Gefran Spa - Drive & Motion Control Unit • www.gefran.com 147

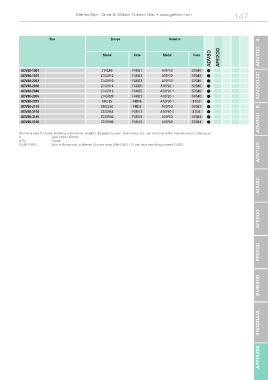

Size Europe America

ADV80 AFE200
Model Code Model Code ADV200 - 4

ADV80-1007 Z14GR6 F4M01 A70P10 S7G49 l
ADV80-1015 Z14GR10 F4M03 A70P10 S7G49 l
ADV80-2022 Z14GR10 F4M03 A70P10 S7G49 l
ADV80-2030 Z14GR16 F4M05 A70P20-1 S7G48 l ADV200-DC
ADV80-2040 Z14GR16 F4M05 A70P20-1 S7G48 l
ADV80-2055 Z14GR20 F4M07 A70P20-1 S7G48 l
ADV80-2075 GR2/25 F4D16 A70P30-1 S7I50 l
ADV80-2110 GRD3/50 F4D21 A70P50 S7G53 l
ADV80-3150 Z22GR63 F4M17 A70P60-4 S7I34 l
ADV80-3185 Z22GR80 F4M19 A70P80 S7G54 l ADV200 - 6
ADV80-3220 Z22GR80 F4M19 A70P80 S7G54 l

Technical data for fuses, including dimensions, weights, dissipated power, fuse blocks, etc. can be found in the manufacturers' catalogues:
S Jean Müller, Eltville
A70... Ferraz
ADV100
FUSE-PWR-... Siba or Bussmann or Mersen (Square body DIN 43653 110 mm stud-mount high speed FUSE)
