Gefran Spa - Drive & Motion Control Unit • www.gefran.com 169

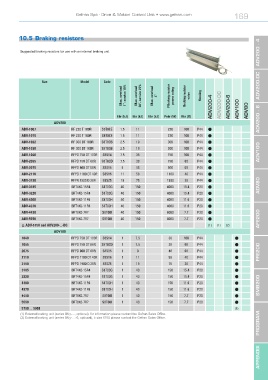

10.5 Braking resistors
ADV200 - 4

Suggested braking resistors for use with an internal braking unit.

Size Model Code ADV200-DC
Max. overload 1”- service 10% Max. overload 30”- service 25% Max. overload 5” PBraking resistor power rating Braking resistor value Housing ADV200-DC

Ebr (kJ) Ebr (kJ) Ebr (kJ) Pnbr (W) Rbr (Ω) ADV200-4 ADV200-6 ADV100 ADV80 ADV200 - 6
ADV200
ADV-1007 RF 220 T 100R S8T0CE 1.5 11 220 100 IP44 l
ADV-1015 RF 220 T 100R S8T0CE 1.5 11 220 100 IP44 l
ADV-1022 RF 300 DT 100R S8T0CB 2.5 19 300 100 IP44 l
ADV-1030 RF 300 DT 100R S8T0CB 2.5 19 300 100 IP44 l
ADV-1040 RFPD 750 DT 100R S8SY4 7.5 38 750 100 IP44 l ADV100
ADV-2055 RFPD 750 DT 68R S8T0CD 7.5 38 750 68 IP44 l
ADV-2075 RFPD 900 DT 68R S8SY5 9 48 900 68 IP44 l
ADV-2110 RFPD 1100 DT 40R S8SY6 11 58 1100 40 IP44 l
ADV-3150 RFPR 1900 D 28R S8SZ5 19 75 1900 28 IP44 l
ADV-3185 BRT4K0-15R4 S8T00G 40 150 4000 15.4 IP20 l ADV80
ADV-3220 BRT4K0-15R4 S8T00G 40 150 4000 15.4 IP20 l
ADV-4300 BRT4K0-11R6 S8T00H 40 150 4000 11.6 IP20 l
ADV-4370 BRT4K0-11R6 S8T00H 40 150 4000 11.6 IP20 l
ADV-4450 BRT8K0-7R7 S8T00I 40 150 8000 7.7 IP20 l
ADV-5550 BRT8K0-7R7 S8T00I 40 150 8000 7.7 IP20 l AFE200
≥ ADV-5750 and ADV200-...-DC (1) (1) (2)
ADV100
1040 RFPD 750 DT 100R S8SY4 1 7.5 38 100 IP44 l
1055 RFPD 750 DT 68R S8T0CD 1 7.5 38 68 IP44 l
2075 RFPD 900 DT 68R S8SY5 1 9 48 68 IP44 l FFE200
2110 RFPD 1100 DT 40R S8SY6 1 11 58 40 IP44 l
3150 RFPD 1900 D 28R S8SZ5 1 19 75 28 IP44 l
3185 BRT4K0-15R4 S8T00G 1 40 150 15.4 IP20 l
3220 BRT4K0-15R4 S8T00G 1 40 150 15.4 IP20 l
4300 BRT4K0-11R6 S8T00H 1 40 150 11.6 IP20 l SMB200
4370 BRT4K0-11R6 S8T00H 1 40 150 11.6 IP20 l
4450 BRT8K0-7R7 S8T00I 1 40 150 7.7 IP20 l
5550 BRT8K0-7R7 S8T00I 1 40 150 7.7 IP20 l
5750 ... 5900 (1)
PROGRAM.
(1) External braking unit (series BUy-..., optional), for information please contact the Gefran Sales Office.
(2) External braking unit (series BUy-....-6, optional), ≥ size 6750 please contact the Gefran Sales Office.
