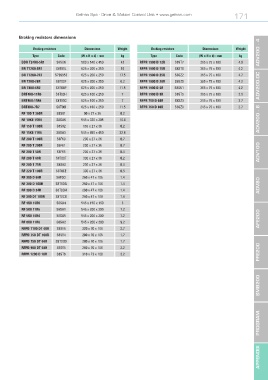

Braking resistors dimensions

Braking resistors Dimensions Weight Braking resistors Dimensions Weight
Type Code (W x H x d) - mm kg Type Code (W x H x d) - mm kg ADV200 - 4
BDR T24K0-5R1 S8SU6 580 x 540 x 450 42 RFPR 1900 D 12R S8ST7 365 x 75 x 100 4.0
BR T12K0-5R1 S8T00L 625 x 200 x 250 16 RFPR 1900 D 15R S8ST8 365 x 75 x 100 4.2
BR T12K0-7R7 S799953 625 x 200 x 250 17.5 RFPR 1900 D 25R S8SZ2 365 x 75 x 100 4.7
BR T2K0-28R S8T00F 625 x 200 x 250 6.2 RFPR 1900 D 28R S8SZ5 365 x 75 x 100 4.2
BR T8K0-6R2 S8T00P 625 x 200 x 250 11.5 RFPR 1900 D 6R S8SU1 365 x 75 x 100 4.2 ADV200-DC
BRT4K0-11R6 S8T00H 625 x 100 x 250 7 RFPR 1900 D 8R S8ST5 365 x 75 x 100 3.9
BRT4K0-15R4 S8T00G 625 x 100 x 250 7 RFPR 750 D 68R S8SZ3 245 x 75 x 100 2.7
BRT8K0-7R7 S8T00I 625 x 160 x 250 11.5 RFPR 750 D 80R S8SZ0 245 x 75 x 100 2.7
RF 100 T 360R S8S81 90 x 27 x 36 0.2
RF 10K0 15R4 S8SA6 545 x 330 x 205 10.8 ADV200 - 6
RF 150 T 100R S8S82 155 x 27 x 36 0.2
RF 15K0 11R6 S8SA3 545 x 450 x 450 22.8
RF 200 T 100R S6F60 200 x 27 x 36 0.7
RF 200 T 200R S6F61 200 x 27 x 36 0.7
RF 200 T 50R S6F65 200 x 27 x 36 0.4 ADV100
RF 200 T 68R S8T00T 300 x 27 x 36 0.2
RF 200 T 75R S8S83 200 x 27 x 36 0.4
RF 220 T 100R S8T0CE 300 x 27 x 36 0.5
RF 300 D 68R S8T0CI 260 x 47 x 106 1.4
RF 300 D 100R S8T0CG 260 x 47 x 106 1.4 ADV80
RF 300 D 34R S8T0CH 260 x 47 x 106 1.4
RF 300 DT 100R S8T0CB 260 x 47 x 108 1.4
RF 4K0 15R0 S8SA4 545 x 150 x 190 5
RF 5K0 11R6 S8SA1 545 x 200 x 200 7.2
RF 5K0 15R4 S8SA5 545 x 200 x 200 7.2 AFE200
RF 8K0 11R6 S8SA2 545 x 200 x 200 9.2
RFPD 1100 DT 40R S8SY6 320 x 70 x 106 2.7
RFPD 750 DT 100R S8SY4 200 x 70 x 106 1.7
RFPD 750 DT 68R S8T0CD 200 x 70 x 106 1.7
FFE200
RFPD 900 DT 68R S8SY5 260 x 70 x 106 2.2
RFPR 1200 D 10R S8ST6 310 x 73 x 100 3.2
