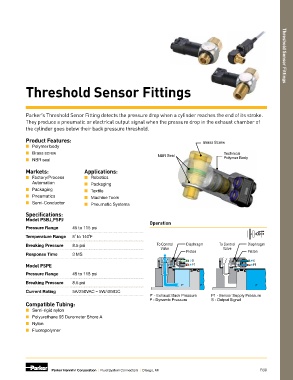

Page 123 - Brass, Composite and Thermoplastic Fittings and Valves

Threshold Sensor Fittings Threshold Sensor Fittings

Parker’s Threshold Senor Fitting detects the pressure drop when a cylinder reaches the end of its stroke.
They produce a pneumatic or electrical output signal when the pressure drop in the exhaust chamber of
the cylinder goes below their back pressure threshold.

Product Features: Brass Screw
■ Polymer body
■ Brass screw Technical
NBR Seal Polymer Body
■ NBR seal

Markets: Applications:
■ Factory/Process ■ Robotics
Automation ■ Packaging
■ Packaging ■ Textile
■ Pneumatics ■ Machine Tools
■ Semi-Conductor ■ Pneumatic Systems

Specifications:
Model PSBJ,PSPJ
Operation
Pressure Range 45 to 115 psi
Temperature Range 5˚ to 140˚F
Breaking Pressure 8.5 psi To Control Diaphragm To Control Diaphragm
Valve Valve
Response Time 3 MS Piston Piston
Model PSPE

Pressure Range 45 to 115 psi
Breaking Pressure 8.5 psi
Current Rating 5A/250VAC – 5W/48VDC
P' - Exhaust Back Pressure P1 - Sensor Supply Pressure
P - Dynamic Pressure S - Output Signal
Compatible Tubing:
■ Semi-rigid nylon
■ Polyurethane 95 Durometer Shore A
■ Nylon
■ Fluoropolymer

Parker Hannifin Corporation | Fluid System Connectors | Otsego, MI B39
