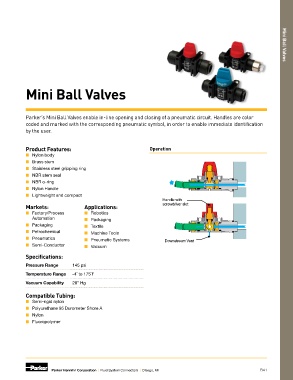

Mini Ball Valves Mini Ball Valves

Parker’s Mini Ball Valves enable in-line opening and closing of a pneumatic circuit. Handles are color
coded and marked with the corresponding pneumatic symbol, in order to enable immediate identification
by the user.

Product Features: Operation
■ Nylon body
■ Brass stem
■ Stainless steel gripping ring
■ NBR stem seal
■ NBR o-ring
■ Nylon Handle
■ Lightweight and compact
Handle with
Markets: Applications: screwdriver slot
■ Factory/Process ■ Robotics
Automation ■ Packaging
■ Packaging ■ Textile
■ Petrochemical ■ Machine Tools
■ Pneumatics ■ Pneumatic Systems Downstream Vent
■ Semi-Conductor ■ Vacuum

Specifications:
Pressure Range 145 psi

Temperature Range -4˚ to 175˚F
Vacuum Capability 28” Hg

Compatible Tubing:
■ Semi-rigid nylon
■ Polyurethane 95 Durometer Shore A
■ Nylon
■ Fluoropolymer

Parker Hannifin Corporation | Fluid System Connectors | Otsego, MI B41
