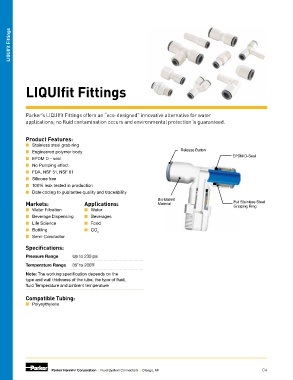

Page 130 - Brass, Composite and Thermoplastic Fittings and Valves

LIQUIfit Fittings

LIQUIfit Fittings

Parker’s LIQUIfit Fittings offers an “eco-designed” innovative alternative for water
applications; no fluid contamination occurs and environmental protection is guaranteed.

Product Features:
■ Stainless steel grab ring
■ Engineered polymer body Release Button
■ EPDM D – seal EPDM D-Seal
■ No Pumping effect
■ FDA, NSF 51, NSF 61
■ Silicone free
■ 100% leak tested in production
■ Date coding to guarantee quality and traceability
Bio-Based
Markets: Applications: Material Full Stainless Steel
Gripping Ring
■ Water Filtration ■ Water
■ Beverage Dispensing ■ Beverages
■ Life Science ■ Food
■ Bottling ■ CO
2
■ Semi-Conductor

Specifications:
Pressure Range Up to 230 psi
Temperature Range 35˚ to 200˚F

Note: The working specification depends on the
type and wall thickness of the tube, the type of fluid,
fluid Temperature and ambient temperature

Compatible Tubing:
■ Polyeythylene

Parker Hannifin Corporation | Fluid System Connectors | Otsego, MI C4
