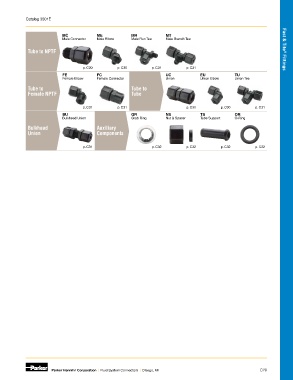

Page 155 - Brass, Composite and Thermoplastic Fittings and Valves

Catalog 3501E

MC ME MR MT
Male Connector Male Elbow Male Run Tee Male Branch Tee
Tube to NPTF Fast & Tite ® Fittings

p. C30 p. C30 p. C31 p. C31
FE FC UC EU TU
Female Elbow Female Connector Union Union Elbow Union Tee
Tube to Tube to
Female NPTF Tube

p. C31 p. C31 p. C30 p. C30 p. C31
BU GR NS TS OR
Bulkhead Union Grab Ring Nut & Spacer Tube Support O-Ring
Bulkhead Auxiliary
Union Components

p. C31 p. C32 p. C32 p. C32 p. C32

Parker Hannifin Corporation | Fluid System Connectors | Otsego, MI C29
