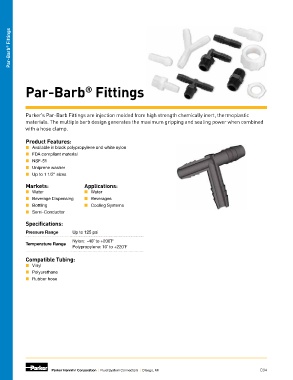

Page 160 - Brass, Composite and Thermoplastic Fittings and Valves

Par-Barb ® Fittings

Par-Barb Fittings
®

Parker’s Par-Barb Fittings are injection molded from high strength chemically inert, thermoplastic
materials. The multiple barb design generates the maximum gripping and sealing power when combined
with a hose clamp.

Product Features:
■ Available in black polypropylene and white nylon
■ FDA compliant material
■ NSF-51
■ Uniprene washer
■ Up to 1 1/2” sizes

Markets: Applications:
■ Water ■ Water
■ Beverage Dispensing ■ Beverages
■ Bottling ■ Cooling Systems
■ Semi-Conductor
Specifications:

Pressure Range Up to 125 psi
Nylon: -40˚ to +200˚F
Temperature Range
Polypropylene: 10˚ to +220˚F

Compatible Tubing:
■ Vinyl
■ Polyurethane
■ Rubber hose

Parker Hannifin Corporation | Fluid System Connectors | Otsego, MI C34
