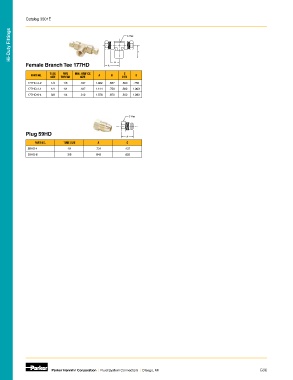

P. 254
Catalog 3501E
Hi-Duty Fittings C Hex D
Female Branch Tee 177HD A B
PART NO. TUBE PIPE MIN. ORIFICE A B C D
SIZE THREAD SIZE HEX
177HD-4-2 1/4 1/8 .187 1.082 .687 .500 .750
177HD-4-4 1/4 1/4 .187 1.144 .750 .562 1.093
177HD-6-4 3/8 1/4 .312 1.376 .970 .562 1.093
C Hex
Plug 59HD
A
PART NO. TUBE SIZE A C
59HD-4 1/4 .734 .437
59HD-6 3/8 .843 .625
Parker Hannifin Corporation | Fluid System Connectors | Otsego, MI G36
