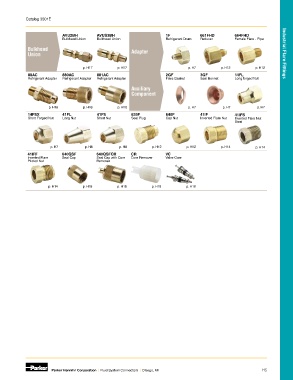

Page 259 - Brass, Composite and Thermoplastic Fittings and Valves

Catalog 3501E

AVU2BH AVUS3BH 1F 661FHD 664FHD
Bulkhead Union Bulkhead Union Refrigerant Drum Reducer Female Flare - Pipe
Bulkhead
Union Adapter Industrial Flare Fittings

p. H17 p. H17 p. H7 p. H12 p. H12
88AC 880AC 881AC 2GF 3GF 14FL
Refrigerant Adapter Refrigerant Adapter Refrigerant Adapter Flare Gasket Seal Bonnet Long forged Nut
Auxiliary
Component

p. H18 p. H18 p. H18 p. H7 p. H7 p. H7
14FSX 41FL 41FS 639F 640F 41IF 41IFS
Short Forged Nut Long Nut Short Nut Seal Plug Cap Nut Inverted Flare Nut Inverted Flare Nut
Steel

p. H7 p. H8 p. H8 p. H12 p. H12 p. H14 p. H14
41IFF 640QSF 640QSFCR CR VC
Inverted Flare Seal Cap Seal Cap with Core Core Remover Valve Core
Piloted Nut Remover

p. H14 p. H18 p. H18 p. H18 p. H18

Parker Hannifin Corporation | Fluid System Connectors | Otsego, MI H5
