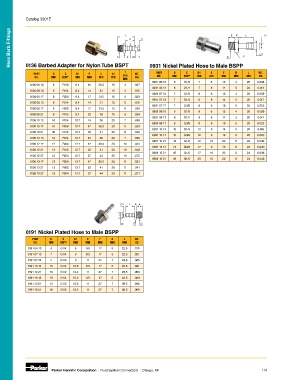

Page 286 - Brass, Composite and Thermoplastic Fittings and Valves

Catalog 3501E

Hose Barb Fittings

0136 Barbed Adapter for Nylon Tube BSPT
C
D
PART
D1
K
F
E
PART D C D1 F L L1 T WT. 0931 Nickel Plated Hose to Male BSPP L WT.
NO. MM BSPT MM MM MM MM MIN KG NO. MM BSPP MM MM MM MM MM KG
MM
0931 06 10 6 G1/8 7 6 12 4 20 0.008
0136 06 10 6 R1/8 6.4 10 26.5 15 4 .007
0931 06 13 6 G1/4 7 8 14 5 20 0.013
0136 06 13 6 R1/4 6.4 14 31 15 4 .015
0931 07 10 7 G1/8 8 6 12 4 20 0.009
0136 06 17 6 R3/8 6.4 17 31.5 15 4 .020
0931 07 13 7 G1/4 8 8 14 5 20 0.017
0136 08 13 8 R1/4 8.4 14 31 15 6 .016
0931 07 17 7 G3/8 8 9 19 5 20 0.022
0136 08 17 8 R3/8 8.4 17 31.5 15 6 .020
0931 08 10 8 G1/8 9 6 12 4 20 0.009
0136 08 21 8 R1/2 8.4 22 36 15 6 .039
0931 08 13 8 G1/4 9 8 14 5 20 0.014
0136 10 13 10 R1/4 10.7 14 36 20 7 .019
0931 08 17 8 G3/8 9 9 19 5 20 0.022
0136 10 17 10 R3/8 10.7 17 36.5 20 8 .023
0931 10 13 10 G1/4 12 8 14 5 20 0.016
0136 10 21 10 R1/2 10.7 22 41 20 8 .040
0931 10 17 10 G3/8 12 9 19 5 20 0.023
0136 12 13 12 R1/4 12.7 14 36 20 7 .019
0931 10 21 10 G1/2 12 10 22 6 22 0.032
0136 12 17 12 R3/8 12.7 17 36.5 20 10 .023
0931 15 17 15 G3/8 17 9 19 6 24 0.030
0136 12 21 12 R1/2 12.7 22 41 20 10 .042
0931 15 21 15 G1/2 17 10 22 6 24 0.036
0136 12 27 12 R3/4 12.7 27 44 20 10 .072
0931 18 21 18 G1/2 20 10 22 6 24 0.043
0136 13 17 13 R3/8 13.7 17 36.5 20 11 .023
0136 13 21 13 R1/2 13.7 22 41 20 11 .041
0136 13 27 13 R3/4 13.7 27 44 20 11 .071

0191 Nickel Plated Hose to Male BSPP
PART D C D1 E F K L WT.
NO. MM BSPP MM MM MM MM MM KG
0191 04 13 4 G1/4 6 9.5 17 5 22.5 .019
0191 07 13 7 G1/4 9 9.5 17 5 22.5 .021
0191 07 21 7 G1/2 9 11 27 7 29.5 .065
0191 10 13 10 G1/4 12.2 9.5 17 5 22.5 .021
0191 10 21 10 G1/2 12.2 11 27 7 29.5 .060
0191 13 13 13 G1/4 15.2 9.5 17 5 22.5 .023
0191 13 21 13 G1/2 15.2 11 27 7 29.5 .058
0191 16 21 16 G1/2 18.5 11 27 7 36.5 .069

Parker Hannifin Corporation | Fluid System Connectors | Otsego, MI I14
