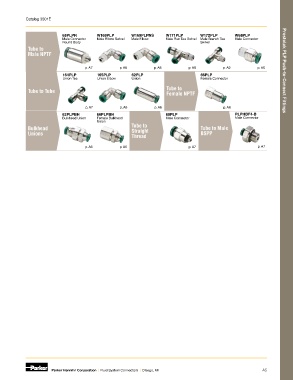

Page 31 - Brass, Composite and Thermoplastic Fittings and Valves

Catalog 3501E

68PLPR W169PLP W169PLPNS W171PLP W172PLP W68PLP
Male Connector Male Elbow Swivel Male Elbow Male Run Tee Swivel Male Branch Tee Male Connector
Round Body Swivel
Tube to
Male NPTF

p. A7 p. A8 p. A8 p. A8 p. A9 p. A6
164PLP 165PLP 62PLP 66PLP Prestolok PLP Push-to-Connect Fittings
Union Tee Union Elbow Union Female Connector
Tube to
Tube to Tube Female NPTF

p. A7 p. A8 p. A6 p. A6
62PLPBH 66PLPBH 68PLP PLPHBF4-B
Bulkhead Union Female Bulkhead Male Connector Male Connector
Union
Bulkhead Tube to Tube to Male
Unions Straight BSPP
Thread

p. A6 p. A6 p. A7 p. A7

Parker Hannifin Corporation | Fluid System Connectors | Otsego, MI A5
