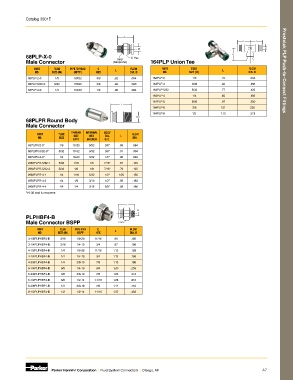

Page 33 - Brass, Composite and Thermoplastic Fittings and Valves

Catalog 3501E

L
L L
D D
68PLP-X-0 C Hex L
Seal
Male Connector (Neoprene) 164PLP Union Tee
PART TUBE PIPE THREAD C L FLOW PART TUBE L FLOW
NO. SIZE (IN) (NPTF) HEX DIA. D NO. SIZE (IN) DIA. D Prestolok PLP Push-to-Connect Fittings
68PLP-2-0 1/8 10X32 3/8 .92 .094 164PLP-2 1/8 .74 .094
68PLP-5/32-0 5/32 10X32 3/8 .90 .090 164PLP-3 3/16 .82 .156
68PLP-4-0 1/4 10X32 1/2 .96 .094 164PLP-5/32 5/32 .77 .125
164PLP-4 1/4 .85 .188
164PLP-5 5/16 .97 .250
L
164PLP-6 3/8 1.01 .250
164PLP-8 1/2 1.15 .375
O.D.
68PLPR Round Body
Male Connector
THREAD INTERNAL BODY
PART TUBE SIZE HEX DIA. L FLOW
NO. SIZE DIA.
NPTF BROACH O.D.
68PLPR-2-0* 1/8 10-32 3/32 3/8" .89 .094
68PLPR-5/32-0* 5/32 10-32 3/32 3/8" .91 .094
68PLPR-4-0* 1/4 10-32 3/32 1/2" .95 .094
W68PLPR-5/32-1 5/32 1/16 1/8 7/16" .87 .125
W68PLPR-5/32-2 5/32 1/8 1/8 7/16" .79 .125
W68PLPR-4-1 1/4 1/16 5/32 1/2" 1.06 .156
W68PLPR-4-2 1/4 1/8 3/16 1/2" .88 .188
W68PLPR-4-4 1/4 1/4 3/16 5/8" .99 .188
*10-32 seal is neoprene

L
D
PLPHBF4-B
Male Connector BSPP C Hex
PART TUBE PIPE THD C FLOW
NO. SIZE (IN) BSPP HEX L DIA. D
3-1/8PLPHBF4-B 3/16 1/8-28 11/16 .96 .156
3-1/4PLPHBF4-B 3/16 1/4-19 3/4 .97 .156
4-1/8PLPHBF4-B 1/4 1/8-28 11/16 1.13 .188
4-1/4PLPHBF4-B 1/4 1/4-19 3/4 1.13 .188
4-3/8PLPHBF4-B 1/4 3/8-19 7/8 1.13 .188
6-1/4PLPHBF4-B 3/8 1/4-19 3/4 1.26 .256
6-3/8PLPHBF4-B 3/8 3/8-19 7/8 1.26 .312
6-1/2PLPHBF4-B 3/8 1/2-14 1-1/16 1.26 .312
8-3/8PLPHBF4-B 1/2 3/8-19 7/8 1.41 .452
8-1/2PLPHBF4-B 1/2 1/2-14 1-1/16 1.37 .452

Parker Hannifin Corporation | Fluid System Connectors | Otsego, MI A7
