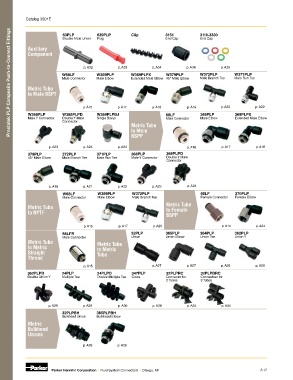

Page 38 - Brass, Composite and Thermoplastic Fittings and Valves

Catalog 3501E

Prestolok PLP Composite Push-to-Connect Fittings
63PLP 639PLP Clip 3151 3110-3330
Double Male Union Plug End Cap End Cap
Auxiliary
Component

p. A32 p. A33 p. A34 p. A34 p. A35
W68LF W369PLP W369PLPX W379PLP W372PLP W371PLP
Male Connector Male Elbow Extended Male Elbow 45° Male Elbow Male Branch Tee Male Run Tee
Metric Tube
to Male BSPT

p. A15 p. A17 p. A18 p. A19 p. A20 p. A22
W368PLP W368PLPD W369PLPBJ 68LF 369PLP 369PLPX
Male Y Connector Double Y Male Single Banjo Male Connector Male Elbow Extended Male Elbow
Connector
Metric Tube
to Male
BSPP

p. A23 p. A24 p. A24 p. A16 p. A17 p. A18
379PLP 372PLP 371PLP 368PLP 368PLPD
45° Male Elbow Male Branch Tee Male Run Tee Male Y Connector Double Y Male
Connector

p. A19 p. A21 p. A22 p. A23 p. A24
W68LF W369PLP W372PLP 66LF 370PLP
Male Connector Male Elbow Male Branch Tee Female Connector Female Elbow
Metric Tube
Metric Tube to Female
to NPTF BSPP

p. A15 p. A17 p. A20 p. A14 p. A24
68LFR 32PLP 365PLP 364PLP 362PLP
Male Connector Union Union Elbow Union Tee Union Y
Metric Tube Metric Tube
to Metric to Metric
Straight Tube
Thread

p. A15 p. A27 p. A27 p. A28 p. A28
362PLPD 24PLP 24PLPD 347PLP 32PLPRC 32PLPDRC
Double Union Y Multiple Tee Double Multiple Tee Cross Connector for Connectoer for
2 Tubes 3 Tubes

p. A29 p. A29 p. A30 p. A30 p. A34 p. A34
32PLPBH 365PLPBH
Bulkhead Union Bulkhead Elbow
Metric
Bulkhead
Unions

p. A29 p. A29

Parker Hannifin Corporation | Fluid System Connectors | Otsego, MI A12
