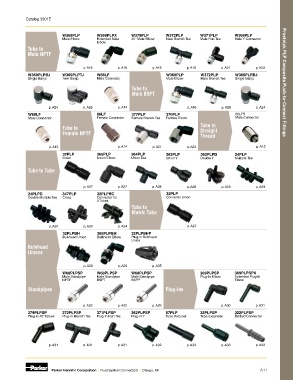

Page 37 - Brass, Composite and Thermoplastic Fittings and Valves

Catalog 3501E

W369PLP W369PLPX W379PLP W372PLP W371PLP W368PLP
Male Elbow Extended Male 45° Male Elbow Male Branch Tee Male Run Tee Male Y Connector
Elbow
Tube to
Male NPTF

p. A16 p. A18 p. A18 p. A19 p. A21 p. A23
W369PLPBJ W369PLPTJ W68LF W369PLP W372PLP W369PLPBJ
Single Banjo Twin Banjo Male Connector Male Elbow Male Branch Tee Single Banjo Prestolok PLP Composite Push-to-Connect Fittings
Tube to
Male BSPT

p. A24 p. A26 p. A14 p. A16 p. A20 p. A24
W68LF 66LF 377PLP 370PLP 68LFR
Male Connector Female Connector Female Branch Tee Female Elbow Male Connector
Tube to
Tube to Straight
Female NPTF Thread

p. A15 p. A14 p. A21 p. A24 p. A15
32PLP 365PLP 364PLP 362PLP 362PLPD 24PLP
Union Union Elbow Union Tee Union Y Double Y Multiple Tee

Tube to Tube

p. A27 p. A27 p. A28 p. A28 p. A29 p. A29
24PLPD 347PLP 32PLPRC 32PLP
Double Multiple Tee Cross Connector for Converter Union
2 Tubes
Tube to
Metric Tube

p. A30 p. A30 p. A34 p. A27
32PLPBH 365PLPBH 32PLPBHP
Bulkhead Union Bulkhead Elbow Plug-in Bulkhead
Union
Bulkhead
Unions

p. A29 p. A29 p. A35
W68PLPSP W68PLPSP W68PLPSP 369PLPSP 369PLPSPX
Male Standpipe Male Standpipe Male Standpipe Plug-In Elbow Extended Plug-In
NPTF BSPT BSPP Elbow
Standpipes Plug-ins

p. A22 p. A22 p. A23 p. A30 p. A31
379PLPSP 372PLPSP 371PLPSP 362PLPSP 67PLP 32PLPSP 322PLPSP
Plug-In 45° Elbow Plug-In Branch Tee Plug-In Run Tee Plug-In Y Tube Reducer Tube Expander Barbed Connector

p. A31 p. A31 p. A31 p. A32 p. A33 p. A33 p. A33

Parker Hannifin Corporation | Fluid System Connectors | Otsego, MI A11
