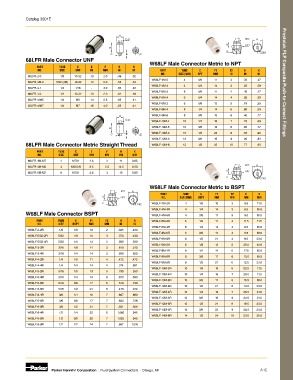

Page 41 - Brass, Composite and Thermoplastic Fittings and Valves

Catalog 3501E

68LFR Male Connector UNF
W68LF Male Connector Metric to NPT
PART TUBE C E F H K
NO. SIZE UNF IN MM IN IN PART TUBE C F1 F2 H K
NO. SIZE (MM) NPT MM IN IN IN
68LFR-2-0 1/8 10-32 .13 2.0 .49 .32
W68LF-4M-2 4 1/8 11 3 .33 .47
68LFR-4M-0 5/32 (4M) 10-32 .13 2.0 .54 .34 Prestolok PLP Composite Push-to-Connect Fittings
W68LF-4M-4 4 1/4 14 3 .28 .59
68LFR-4-1 1/4 1/16 - 3.0 .63 .42
W68LF-6M-2 6 1/8 11 4 .45 .47
68LFR-4-0 1/4 10-32 .13 2.0 .64 .46
W68LF-6M-4 6 1/4 14 4 .33 .59
68LFR-4-M5 1/4 M5 .14 2.5 .65 .41
W68LF-8M-2 8 1/8 13 5 .79 .55
68LFR-4-M7 1/4 M7 .18 4.0 .65 .41
W68LF-8M-4 8 1/4 14 6 .66 .59
W68LF-8M-6 8 3/8 18 6 .46 .77
W68LF-10M-4 10 1/4 16 7 .79 .69
W68LF-10M-6 10 3/8 18 8 .65 .77
W68LF-10M-8 10 1/2 22 8 .55 .95
W68LF-12M-6 12 3/8 19 9 .95 .83
68LFR Male Connector Metric Straight Thread W68LF-12M-8 12 1/2 22 10 .77 .95
PART TUBE C E F H K
NO. SIZE UNF MM MM MM MM
68LFR-4M-M7 4 M7X1 4.6 3 14 9.95
68LFR-4M-M5 4 M5X0.8 3.5 2.5 14.5 8.50
68LFR-6M-M7 6 M7X1 4.6 3 16 9.90

W68LF Male Connector Metric to BSPT
PART TUBE C F1 F2 H K
NO. SIZE (MM) BSPT MM MM MM MM
W68LF-4M-2R 4 1/8 10 3 9.5 11.0
W68LF-4M-4R 4 1/4 14 3 6.5 15.0
W68LF Male Connector BSPT W68LF-4M-6R 4 3/8 17 3 8.0 18.5
PART TUBE C F1 F2 H K W68LF-6M-2R 6 1/8 11 4 11.5 11.0
NO. SIZE BSPT MM MM IN IN
W68LF-6M-4R 6 1/4 14 4 8.5 15.0
W68LF-2-2R 1/8 1/8 10 2 .335 .433
W68LF-6M-6R 6 3/8 17 4 8.5 18.5
W68LF-5/32-2R 5/32 1/8 10 3 .370 .430
W68LF-6M-8R 6 1/2 21 4 9.0 23.0
W68LF-5/32-4R 5/32 1/4 14 3 .260 .590
W68LF-8M-2R 8 1/8 13 5 20.0 14.0
W68LF-3-2R 3/16 1/8 11 3 .610 .510
W68LF-8M-4R 8 1/4 14 6 17.0 15.0
W68LF-3-4R 3/16 1/4 14 3 .590 .650
W68LF-8M-6R 8 3/8 17 6 13.0 18.5
W68LF-4-2R 1/4 1/8 11 4 .472 .472
W68LF-8M-8R 8 1/2 21 6 12.0 23.0
W68LF-4-4R 1/4 1/4 14 4 .374 .591
W68LF-10M-2R 10 1/8 16 5 22.5 17.5
W68LF-5-2R 5/16 1/8 13 5 .790 .550
W68LF-10M-4R 10 1/4 16 7 20.0 17.5
W68LF-5-4R 5/16 1/4 14 6 .670 .590
W68LF-10M-6R 10 3/8 17 8 16.5 18.5
W68LF-5-6R 5/16 3/8 17 6 .510 .730
W68LF-10M-8R 10 1/2 21 8 14.0 23.0
W68LF-5-8R 5/16 1/2 21 6 .470 .910
W68LF-12M-4R 12 1/4 19 7 26.5 21.0
W68LF-6-4R 3/8 1/4 16 7 .807 .689
W68LF-12M-6R 12 3/8 19 9 24.0 21.0
W68LF-6-6R 3/8 3/8 17 7 .650 .728
W68LF-12M-8R 12 1/2 21 9 19.5 23.0
W68LF-6-8R 3/8 1/2 21 7 .551 .906
W68LF-14M-6R 14 3/8 22 9 28.5 24.0
W68LF-8-4R 1/2 1/4 22 6 1.060 .945
W68LF-14M-8R 14 1/2 24 10 23.5 26.0
W68LF-8-6R 1/2 3/8 22 7 1.020 .945
W68LF-8-8R 1/2 1/2 24 7 .807 1.020

Parker Hannifin Corporation | Fluid System Connectors | Otsego, MI A15
