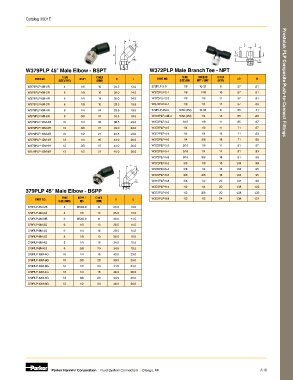

Page 45 - Brass, Composite and Thermoplastic Fittings and Valves

Catalog 3501E

L
L L
2 2
H H
C
Hex C
Hex
W379PLP 45° Male Elbow - BSPT W372PLP Male Branch Tee - NPT
TUBE C HEX TUBE THREAD C HEX
PART NO. SIZE (MM) BSPT (MM) H L PART NO. SIZE (IN) NPT / UNF (MM) L/2 H
W379PLP-4M-2R 4 1/8 10 24.5 13.0 372PLP-2-0 1/8 10-32 8 .57 .61 Prestolok PLP Composite Push-to-Connect Fittings
W379PLP-6M-2R 6 1/8 10 28.0 14.5 W372PLP-2-1 1/8 1/16 10 .57 .61
W379PLP-6M-4R 6 1/4 14 30.0 14.5 W372PLP-2-2 1/8 1/8 11 .57 .61
W379PLP-8M-2R 8 1/8 10 33.5 19.5 W372PLP-2-4 1/8 1/4 14 .57 .63
W379PLP-8M-4R 8 1/4 14 33.5 19.5 372PLP-4M-0 5/32 (4M) 10-32 8 .55 .71
W379PLP-8M-6R 8 3/8 17 33.5 19.5 W372PLP-4M-4 5/32 (4M) 1/4 14 .55 .63
W379PLP-10M-4R 10 1/4 15 38.5 23.0 W372PLP-3-2 3/16 1/8 11 .85 .67
W379PLP-10M-6R 10 3/8 17 39.0 23.0 W372PLP-4-2 1/4 1/8 11 .71 .67
W379PLP-10M-8R 10 1/2 21 40.5 23.0 W372PLP-4-4 1/4 1/4 14 .71 .63
W379PLP-12M-4R 12 1/4 15 44.0 26.0 W372PLP-4-6 1/4 3/8 18 .71 .65
W379PLP-12M-6R 12 3/8 17 44.0 26.0 W372PLP-5-2 5/16 1/8 11 .91 .87
W379PLP-12M-8R 12 1/2 21 46.0 26.0 W372PLP-5-4 5/16 1/4 14 .91 .83
W372PLP-5-6 5/16 3/8 18 .91 .85
W372PLP-6-2 3/8 1/8 15 1.04 .99
L
W372PLP-6-4 3/8 1/4 15 1.04 .99
W372PLP-6-6 3/8 3/8 18 1.04 .95
H
C W372PLP-6-8 3/8 1/2 22 1.04 .98
Hex
W372PLP-8-4 1/2 1/4 20 1.38 1.22
379PLP 45° Male Elbow - BSPP W372PLP-8-6 1/2 3/8 20 1.38 1.22
TUBE BSPP / C HEX
PART NO. SIZE (MM) M5 (MM) H L W372PLP-8-8 1/2 1/2 24 1.38 1.21
379PLP-4M-M5 4 M5X0.8 8 23.0 13.0
379PLP-4M-2G 4 1/8 13 25.0 13.0
379PLP-6M-M5 6 M5X0.8 8 30.0 14.5
379PLP-6M-2G 6 1/8 13 28.5 14.5
379PLP-6M-4G 6 1/4 16 29.5 14.5
379PLP-8M-2G 8 1/8 13 36.0 19.5
379PLP-8M-4G 8 1/4 16 34.5 19.5
379PLP-8M-6G 8 3/8 20 34.5 19.5
379PLP-10M-4G 10 1/4 16 40.5 23.0
379PLP-10M-6G 10 3/8 20 39.0 23.0
379PLP-10M-8G 10 1/2 24 41.0 23.0
379PLP-12M-4G 12 1/4 16 46.0 26.0
379PLP-12M-6G 12 3/8 20 44.5 26.0
379PLP-12M-8G 12 1/2 24 46.0 26.0

Parker Hannifin Corporation | Fluid System Connectors | Otsego, MI A19
