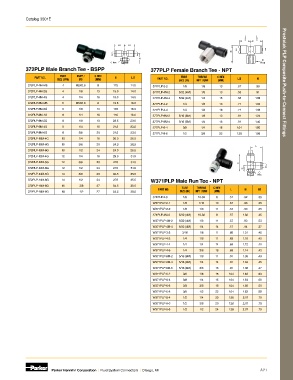

Page 47 - Brass, Composite and Thermoplastic Fittings and Valves

Catalog 3501E

L L
2 2
L2 L2
H
H
C
C Hex Hex
372PLP Male Branch Tee - BSPP 377PLP Female Branch Tee - NPT
PART NO. TUBE BSPP / C HEX H L/2 PART NO. TUBE THREAD C HEX L/2 H
SIZE (MM) M5 (MM) SIZE (IN) NPT / UNF (MM)
372PLP-4M-M5 4 M5X0.8 8 17.5 14.0 377PLP-2-2 1/8 1/8 13 .57 .99 Prestolok PLP Composite Push-to-Connect Fittings
372PLP-4M-2G 4 1/8 13 15.0 14.0 377PLP-4M-2 5/32 (4M) 1/8 13 .55 .91
372PLP-4M-4G 4 1/4 16 15.0 14.0 377PLP-4M-4 5/32 (4M) 1/4 16 .55 1.08
372PLP-6M-M5 6 M5X0.8 8 19.5 16.0 377PLP-4-2 1/4 1/8 13 .71 1.02
372PLP-6M-2G 6 1/8 13 17.0 16.0 377PLP-4-4 1/4 1/4 16 .71 1.18
372PLP-6M-4G 6 1/4 16 17.0 16.0 377PLP-8M-2 5/16 (8M) 1/8 13 .91 1.24
372PLP-8M-2G 8 1/8 13 23.5 23.0 377PLP-8M-4 5/16 (8M) 1/4 16 .91 1.40
372PLP-8M-4G 8 1/4 16 21.5 23.0 377PLP-6-4 3/8 1/4 16 1.04 1.60
372PLP-8M-6G 8 3/8 20 21.5 23.0 377PLP-8-6 1/2 3/8 22 1.38 1.88
372PLP-10M-4G 10 1/4 16 26.0 26.5
372PLP-10M-6G 10 3/8 20 24.0 26.5
L
372PLP-10M-8G 10 1/2 24 24.0 26.5
372PLP-12M-4G 12 1/4 16 29.0 31.0
372PLP-12M-6G 12 3/8 20 27.0 31.0 H
372PLP-12M-8G 12 1/2 24 27.0 31.0 H1
C
372PLP-14M-6G 14 3/8 20 32.5 35.5 Hex
372PLP-14M-8G 14 1/2 24 27.0 35.5 W371PLP Male Run Tee - NPT
372PLP-16M-6G 16 3/8 27 54.5 38.5
PART NO. TUBE THREAD C HEX L H H1
372PLP-16M-8G 16 1/2 27 54.5 38.5 SIZE (IN) NPT / UNF (MM)
371PLP-2-0 1/8 10-32 8 .57 .92 .35
W371PLP-2-1 1/8 1/16 10 .57 .93 .35
W371PLP-2-2 1/8 1/8 11 .57 .93 .35
371PLP-4M-0 5/32 (4M) 10-32 8 .57 1.02 .45
W371PLP-4M-2 5/32 (4M) 1/8 11 .57 .93 .53
W371PLP-4M-4 5/32 (4M) 1/4 14 .57 .94 .37
W371PLP-3-2 3/16 1/8 11 .85 1.31 .45
W371PLP-4-2 1/4 1/8 11 .69 1.16 .45
W371PLP-4-4 1/4 1/4 14 .69 1.12 .41
W371PLP-4-6 1/4 3/8 18 .69 1.14 .43
W371PLP-8M-2 5/16 (8M) 1/8 11 .91 1.38 .49
W371PLP-8M-4 5/16 (8M) 1/4 14 .91 1.34 .45
W371PLP-8M-6 5/16 (8M) 3/8 18 .91 1.36 .47
W371PLP-6-2 3/8 1/8 15 1.04 1.63 .60
W371PLP-6-4 3/8 1/4 15 1.04 1.63 .60
W371PLP-6-6 3/8 3/8 18 1.04 1.60 .55
W371PLP-6-8 3/8 1/2 22 1.04 1.63 .59
W371PLP-8-4 1/2 1/4 20 1.38 2.17 .79
W371PLP-8-6 1/2 3/8 20 1.38 2.17 .79
W371PLP-8-8 1/2 1/2 24 1.38 2.07 .79

Parker Hannifin Corporation | Fluid System Connectors | Otsego, MI A21
