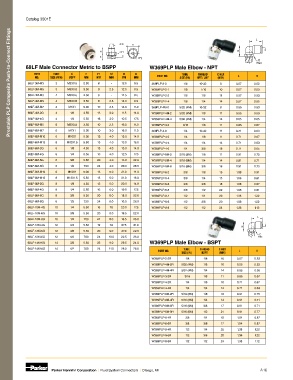

Page 42 - Brass, Composite and Thermoplastic Fittings and Valves

Catalog 3501E

Prestolok PLP Composite Push-to-Connect Fittings

L

H
C
Hex
68LF Male Connector Metric to BSPP W369PLP Male Elbow - NPT
PART TUBE C E F1 F2 H K TUBE THREAD C HEX
NO. SIZE (MM) BSPP MM MM MM MM MM PART NO. SIZE (IN) NPT / UNF (MM) L H
68LF 3M-M3 3 M3X0.5 2.50 8 - 12.5 8.5 369PLP-2-0 1/8 10-32 8 0.57 0.52
68LF-3M-M5 3 M5X0.8 3.50 8 2.5 12.5 8.5 W369PLP-2-1 1/8 1/16 10 0.57 0.53
68LF-4M-M3 4 M3X0.5 2.50 8 - 14.5 8.5 W369PLP-2-2 1/8 1/8 11 0.57 0.53
68LF-4M-M5 4 M5X0.8 3.50 8 2.5 14.0 8.5 W369PLP-2-4 1/8 1/4 14 0.57 0.55
68LF-4M-M7 4 M7X1 5.00 10 2.5 14.0 11.0 369PLP-4M-0 5/32 (4M) 10-32 8 0.55 0.53
68LF-4M-2G 4 1/8 4.50 13 3.0 11.5 14.0 W369PLP-4M-2 5/32 (4M) 1/8 11 0.55 0.53
68LF-4M-4G 4 1/4 5.50 16 3.0 10.5 17.5 W369PLP-4M-4 5/32 (4M) 1/4 14 0.55 0.55
68LF-6M-M5 6 M5X0.8 3.50 10 2.5 16.0 11.0 W369PLP-3-2 3/16 1/8 11 0.85 0.67
68LF-6M-M7 6 M7X1 5.00 10 3.0 16.0 11.0 369PLP-4-0 1/4 10-32 11 0.71 0.63
68LF-6M-M10 6 M10X1 5.00 13 4.0 13.0 14.0 W369PLP-4-2 1/4 1/8 11 0.71 0.67
68LF-6M-M12 6 M12X1.5 5.50 15 4.0 13.0 16.0 W369PLP-4-4 1/4 1/4 14 0.71 0.63
68LF-6M-2G 6 1/8 4.50 13 4.0 13.0 14.0 W369PLP-4-6 1/4 3/8 18 0.71 0.65
68LF-6M-4G 6 1/4 5.50 16 4.0 12.5 17.5 W369PLP-8M-2 5/16 (8M) 1/8 11 0.91 0.75
68LF-6M-6G 6 3/8 5.50 20 4.0 13.0 22.0 W369PLP-8M-4 5/16 (8M) 1/4 14 0.91 0.71
68LF-6M-8G 6 1/2 7.50 24 4.0 20.0 26.0 W369PLP-8M-6 5/16 (8M) 3/8 18 0.91 0.73
68LF-8M-M10 8 M10X1 5.00 13 5.0 21.0 14.0 W369PLP-6-2 3/8 1/8 15 1.08 0.91
68LF-8M-M12 8 M12X1.5 5.50 15 5.0 21.0 16.0 W369PLP-6-4 3/8 1/4 15 1.08 0.91
68LF-8M-2G 8 1/8 4.50 13 5.0 20.5 14.0 W369PLP-6-6 3/8 3/8 18 1.08 0.87
68LF-8M-4G 8 1/4 5.50 16 6.0 19.5 17.5 W369PLP-6-8 3/8 1/2 22 1.08 0.91
68LF-8M-6G 8 3/8 5.50 20 6.0 18.0 22.0 W369PLP-8-4 1/2 1/4 20 1.38 1.22
68LF-8M-8G 8 1/2 7.50 24 6.0 16.5 26.0 W369PLP-8-6 1/2 3/8 20 1.38 1.22
68LF-10M-4G 10 1/4 5.50 16 7.0 23.0 17.5 W369PLP-8-8 1/2 1/2 24 1.38 1.12
68LF-10M-6G 10 3/8 5.50 20 8.0 19.5 22.0
L
68LF-10M-8G 10 1/2 7.50 24 8.0 18.5 26.0
68LF-12M-4G 12 1/4 5.50 19 7.0 27.5 21.0
H
68LF-12M-6G 12 3/8 5.50 20 9.0 27.0 22.0
C
68LF-12M-8G 12 1/2 7.00 24 10.0 22.5 26.0 Hex
68LF-14M-6G 14 3/8 5.50 22 9.0 29.5 24.0 W369PLP Male Elbow - BSPT
68LF-14M-8G 14 1/2 7.00 24 11.0 28.0 26.0 TUBE THREAD C HEX
PART NO. L H
SIZE (IN) BSPT (MM)
W369PLP-2-2R 1/8 1/8 10 0.57 0.53
W369PLP-4M-2R 5/32 (4M) 1/8 10 0.55 0.53
W369PLP-4M-4R 5/32 (4M) 1/4 14 0.55 0.55
W369PLP-3-2R 3/16 1/8 11 0.85 0.67
W369PLP-4-2R 1/4 1/8 10 0.71 0.67
W369PLP-4-4R 1/4 1/4 14 0.71 0.63
W369PLP-8M-2R 5/16 (8M) 1/8 10 0.91 0.75
W369PLP-8M-4R 5/16 (8M) 1/4 14 0.91 0.71
W369PLP-8M-6R 5/16 (8M) 3/8 17 0.91 0.71
W369PLP-8M-8R 5/16 (8M) 1/2 21 0.91 0.77
W369PLP-6-4R 3/8 1/4 15 1.04 0.87
W369PLP-6-6R 3/8 3/8 17 1.04 0.87
W369PLP-8-4R 1/2 1/4 20 1.38 1.22
W369PLP-8-6R 1/2 3/8 20 1.38 1.22
W369PLP-8-8R 1/2 1/2 24 1.38 1.12

Parker Hannifin Corporation | Fluid System Connectors | Otsego, MI A16
