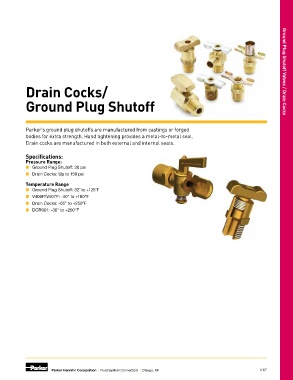

Page 377 - Brass, Composite and Thermoplastic Fittings and Valves

Drain Cocks/ Ground Plug Shutoff Valves / Drain Cocks

Ground Plug Shutoff

Parker’s ground plug shutoffs are manufactured from castings or forged
bodies for extra strength. Hand tightening provides a metal-to-metal seal.
Drain cocks are manufactured in both external and internal seats.

Specifications:
Pressure Range:
■ Ground Plug Shutoff: 30 psi
■ Drain Cocks: Up to 150 psi
Temperature Range
■ Ground Plug Shutoff: 32˚ to +125˚F
■ V406P/V407P: -40° to +180°F
■ Drain Cocks: -65° to +250°F
■ DCR601: -30° to +250°F

Parker Hannifin Corporation | Fluid System Connectors | Otsego, MI K67
