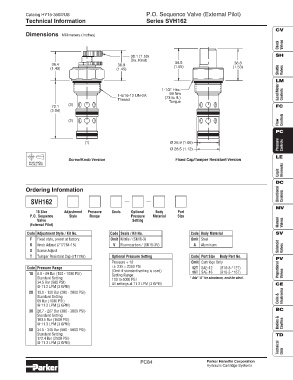

Page 86 - Parker - Pressure Control Valves

Catalog HY15-3502/US P.O. Sequence Valve (External Pilot)
Technical Information Series SVH162

CV
Dimensions Millimeters (Inches)
Check Valves

38.1 (1.50) SH
Dia. Knob
36.4 36.9 39.5 38.8
(1.43) (1.45) (1.55) (1.53) Shuttle Valves

LM
1-1/2" Hex.
99 Nm Load/Motor Controls
1-5/16-12 UN-2A (73 lb. ft.)
Thread
Torque
(3)
72.1 FC
(2.84)
Flow
(2) Controls
PC

(1) Ø 26.9 (1.06) Pressure Controls
Ø 28.5 (1.12)
LE
Screw/Knob Version Fixed Cap/Tamper Resistant Version
THIRD-ANGLE
PROJECTION
Logic Elements

DC
Directional Controls
Ordering Information
SVH162
MV
16 Size Adjustment Pressure Seals Optional Body Port
P.O. Sequence Style Range Pressure Material Size
Valve Setting Manual
(External Pilot) Valves
Code Adjustment Style / Kit No. Code Seals / Kit No. Code Body Material SV
F Fixed style, preset at factory. Omit Nitrile / (SK16-3) Omit Steel
K Knob Adjust (717784-15) V Fluorocarbon / (SK16-3V) A Aluminum Solenoid
S Screw Adjust Valves
T Tamper Resistant Cap (717785) Optional Pressure Setting Code Port Size Body Part No.
PV
Pressure ÷ 10 Omit Cartridge Only
Code Pressure Range i.e. 235 = 2350 PSI 12T SAE-12 (B16-3-*12T)
(Omit if standard setting is used) Proportional
10 6.9 - 69 Bar (100 - 1000 PSI) Setting Range: 16T SAE-16 (B16-3-*16T) Valves
Standard Setting: 100 to 5000 PSI * Add “A” for aluminum, omit for steel.
34.5 Bar (500 PSI) All settings at 11.3 LPM (3 GPM) CE
@ 11.3 LPM (3 GPM)
20 13.8 - 138 Bar (200 - 2000 PSI)
Standard Setting: Coils & Electronics
69 Bar (1000 PSI)
@ 11.3 LPM (3 GPM)
30 20.7 - 207 Bar (300 - 3000 PSI) BC
Standard Setting:
103.5 Bar (1500 PSI)
@ 11.3 LPM (3 GPM) Bodies & Cavities
50 34.5 - 345 Bar (500 - 5000 PSI)
Standard Setting: TD
172.4 Bar (2500 PSI)
Technical Data
@ 11.3 LPM (3 GPM)

PC84 Parker Hannifin Corporation
Hydraulic Cartridge Systems
