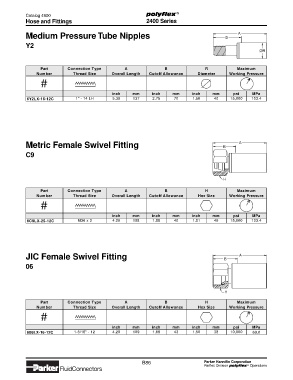

polyflex ®
Catalog 4900
Hose and Fittings 2400 Series

Medium Pressure Tube Nipples B A

Y2
ØR

Part Connection Type A B R Maximum
Number Thread Size Overall Length Cutoff Allowance Diameter Working Pressure

inch mm inch mm inch mm psi MPa
6Y2LX-16-12C 1" - 14 LH 5.39 137 2.75 70 1.56 40 15,000 103.4

Metric Female Swivel Fitting B A

C9

H

Part Connection Type A B H Maximum
Number Thread Size Overall Length Cutoff Allowance Hex Size Working Pressure

inch mm inch mm inch mm psi MPa
6C9LX-25-12C M36 x 2 4.26 108 1.58 40 1.81 46 15,000 103.4

JIC Female Swivel Fitting B A

06

H

Part Connection Type A B H Maximum
Number Thread Size Overall Length Cutoff Allowance Hex Size Working Pressure

inch mm inch mm inch mm psi MPa
606LX-16-12C 1-5/16" - 12 4.29 109 1.68 43 1.50 38 10,000 69.0

B86 Parker Hannifin Corporation
Parflex Division polyflex Operations
®
FluidConnectors
