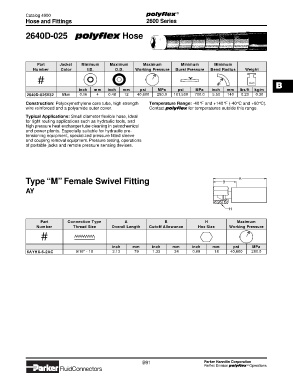

Page 110 - Parker - Polyflex Hose Products (Ultra High Pressure Thermoplastic Hose)

Catalog 4900 polyflex ®
Hose and Fittings 2600 Series

2640D-025 polyflex Hose

Part Jacket Minimum Maximum Maximum Minimum Minimum
Number Color I.D. O.D. Working Pressure Burst Pressure Bend Radius Weight

B
inch mm inch mm psi MPa psi MPa inch mm lbs/ft kg/m
2640D-025V32 Blue 0.16 4 0.48 12 40,600 280.0 101,500 700.0 5.50 140 0.20 0.30
Construction: Polyoxymethylene core tube, high strength Temperature Range: -40°F and +140°F (-40°C and +60°C).
wire reinforced and a polyamide outer cover. Contact polyflex for temperatures outside this range.
Typical Applications: Small diameter flexible hose, ideal
for tight routing applications such as hydraulic tools, and
high pressure heat exchanger tube cleaning in petrochemical
and power plants. Especially suitable for hydraulic pre-
tensioning equipment, specialized pressure fitted sleeve
and coupling removal equipment. Pressure testing, operations
of portable jacks and remote pressure sensing devices.

Type “M” Female Swivel Fitting B A

AY

H

Part Connection Type A B H Maximum
Number Thread Size Overall Length Cutoff Allowance Hex Size Working Pressure

inch mm inch mm inch mm psi MPa
6AYHX-6-2AC 9/16" - 18 3.13 79 1.33 34 0.69 18 40,600 280.0
