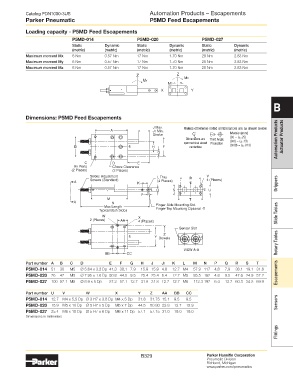

Catalog PDN1000-3US Automation Products – Escapements
Parker Pneumatic P5MD Feed Escapements

Loading capacity - P5MD Feed Escapements

P5MD-014 P5MD-020 P5MD-027
Static Dynamic Static Dynamic Static Dynamic
(metric) (metric) (metric) (metric) (metric) (metric)
Maximum moment Mx 6 Nm 0.57 Nm 17 Nm 1.70 Nm 28 Nm 2.83 Nm
Maximum moment My 6 Nm 0.57 Nm 17 Nm 1.70 Nm 28 Nm 2.83 Nm
Maximum moment Mz 6 Nm 0.57 Nm 17 Nm 1.70 Nm 28 Nm 2.83 Nm
Z Z
MX
MY
MZ
X Y

B

Dimensions: P5MD Feed Escapements

J Max. Unless otherwise noted all tolerances are as shown below
A J1 Min.
Stroke Metric (mm)
Dimensions are Third Angle (0.) = (±.25) Automation Products Actuator Products
symmetrical about Projection (0.0) = (±.13)
B L C H F centerline (0.00) = (±.013)
G

C D E
Air Ports C’bore Clearance
(2 Places) (2 Places)
Stroke Adjustment L Thru V
Screws (Standard) R 4 (Places)
A K (4 Places) L C Grippers
L C Q S L C U
P
M T
A N
Max Length Finger Side Mounting Std.
Typical Both Sides Finger Top Mounting Optional -T Slide Tables
W X
2 (Places) AA 4 (Places)
Sensor Slot
Z
L C Y Dowels Rotary Tables

VIEW A-A
BB CC
Part number A B C D E F G H J J1 K L M N P Q R S T
P5MD-014 51 30 M5 Ø 5.64 x 3.2 Dp 41.3 38.1 7.9 15.9 15.9 4.8 12.7 M4 57.9 117 4.8 7.9 38.1 19.1 31.8
P5MD-020 76 47 M5 Ø 7.95 x 1.6 Dp 50.8 44.5 9.5 25.4 25.4 6.4 12.7 M5 85.5 162 4.8 9.5 47.6 24.9 57.2 Escapements
P5MD-027 100 57.1 M5 Ø 8.9 x 5 Dp 57.2 57.1 12.7 31.8 31.8 12.7 12.7 M6 112.3 197 6.4 12.7 60.3 34.5 69.9

Part number U V W X Y Z AA BB CC
P5MD-014 12.7 M4 x 5.5 Dp Ø 3 H7 x 3.8 Dp M4 x 5 Dp 31.8 31.75 15.1 9.5 9.5
P5MD-020 15.9 M5 x 10 Dp Ø 5 H7 x 5 Dp M5 x 7 Dp 44.5 50.80 23.8 12.7 15.9 Sensors
P5MD-027 25.4 M6 x 10 Dp Ø 5 H7 x 6 Dp M6 x 11 Dp 57.1 57.15 31.0 19.0 19.0
Dimensions in millimeters
