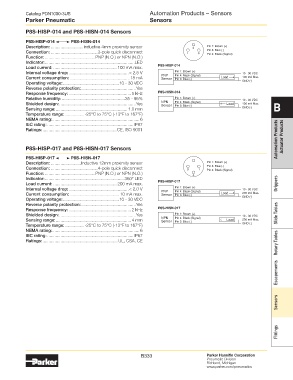

Catalog PDN1000-3US Automation Products – Sensors
Parker Pneumatic Sensors

P8S-HISP-014 and P8S-HISN-014 Sensors

P8S-HISP-014 P8S-HISN-014
Description: ...........................Inductive 4mm proximity sensor 4 Pin 1: Brown (+)
Connection: .......................................3-pole quick disconnect 1 3 Pin 3: Blue (-)
Pin 4: Black (Signal)
Function: ..........................................PNP (N.O.) or NPN (N.O.)
Indicator: ...........................................................................LED
Load current: ..................................................... 100 mA max. P8S-HISP-014
Internal voltage drop: ..................................................< 2.5 V Pin 1: Brown (+) 10 - 30 VDC
Current consumption: ..................................................18 mA PNP Pin 4: Black (Signal) Load 100 mA Max.
Sensor
Pin 3: Blue (-)
Operating voltage: ...............................................10 - 30 VDC GND (-)
Reverse polarity protection: ..............................................Yes
Response frequency: ....................................................5 kHz P8S-HISN-014
Relative humidity: .....................................................35 - 95% Pin 1: Brown (+) 10 - 30 VDC
Shielded design: ................................................................Yes NPN Pin 4: Black (Signal) Load 100 mA Max. B
Sensor
Pin 3: Blue (-)
Sensing range: ............................................................1.0 mm GND (-)
Temperature range: ................-25°C to 75°C (-13°F to 167°F)
NEMA rating: .........................................................................6
IEC rating: ........................................................................IP67
Ratings: ..............................................................CE, ISO 9001 Actuator Products

P8S-HISP-017 and P8S-HISN-017 Sensors Automation Products
P8S-HISP-017 P8S-HISN-017
Description: .........................Inductive 12mm proximity sensor Pin 1: Brown (+)
Connection: .......................................4-pole quick disconnect 3 1 Pin 3: Blue (-)
Pin 4: Black (Signal)
Function: ..........................................PNP (N.O.) or NPN (N.O.) 4
Indicator: .................................................................. 360° LED
Load current: ..................................................... 200 mA max. P8S-HISP-017 Grippers
Internal voltage drop: ..................................................< 2.0 V Pin 1: Brown (+) 10 - 30 VDC
Current consumption: ......................................... 10 mA max. PNP Pin 4: Black (Signal) Load 200 mA Max.
Sensor
Pin 3: Blue (-)
Operating voltage: ...............................................10 - 30 VDC GND (-)
Reverse polarity protection: ..............................................Yes
Response frequency: ....................................................2 kHz P8S-HISN-017
Shielded design: ................................................................Yes Pin 1: Brown (+) 10 - 30 VDC Slide Tables
Sensing range: ...............................................................4 mm NPN Pin 4: Black (Signal) Load 200 mA Max.
Sensor
Pin 3: Blue (-)
Temperature range: ................-25°C to 75°C (-13°F to 167°F) GND (-)
NEMA rating: .........................................................................6
Rotary Tables
IEC rating: ........................................................................IP67
Ratings: ...............................................................UL, CSA, CE

Escapements

Sensors

Fittings

B333 Parker Hannifin Corporation
