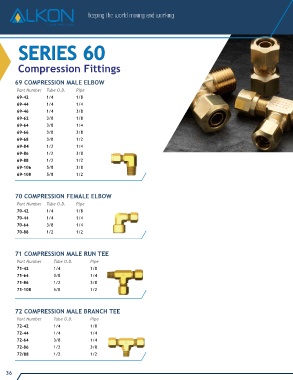

Page 37 - Alkon - 2010 Fittings Product Catalog

Keeping the world moving and working.

SERIES 60

Compression Fittings CUSTOMIZED

69 COMPRESSION MALE ELBOW FITTINGS

Part Number Tube O.D. Pipe
69-42 1/4 1/8
69-44 1/4 1/4
69-46 1/4 3/8
69-62 3/8 1/8
69-64 3/8 1/4
69-66 3/8 3/8
69-68 3/8 1/2
69-84 1/2 1/4
69-86 1/2 3/8
69-88 1/2 1/2
69-106 5/8 3/8
69-108 5/8 1/2

70 COMPRESSION FEMALE ELBOW
Part Number Tube O.D. Pipe
70-42 1/4 1/8
70-44 1/4 1/4
70-64 3/8 1/4
70-88 1/2 1/2

71 COMPRESSION MALE RUN TEE

Part Number Tube O.D. Pipe
71-42 1/4 1/8
71-64 3/8 1/4
71-86 1/2 3/8
71-108 5/8 1/2

72 COMPRESSION MALE BRANCH TEE
Part Number Tube O.D. Pipe
72-42 1/4 1/8
72-44 1/4 1/4
72-64 3/8 1/4
72-86 1/2 3/8
72/88 1/2 1/2
