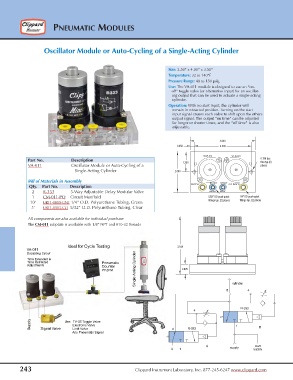

PNEUMATIC MODULES




                   Oscillator Module or Auto-Cycling of a Single-Acting Cylinder




                                                                       Size: 2.50” x 4.00” x 3.50”
                                                                       Temperature: 32 to 140°F
                                                                       Pressure Range: 40 to 150 psig
                                                                       Use: The VA-011 module is designed to use an “on-
                                                                         off” toggle valve (or alternative input) for an oscillat-
                                                                         ing output that can be used to actuate a single-acting
                                                                         cylinder.
                                                                       Operation: With no start input, the cylinder will
                                                                          remain in retracted position. Turning on the start
                                                                         input signal causes each valve to shift upon the others
                                                                         output signal. The output “on time” can be adjusted
                                                                         for longer or shorter times, and the “off time” is also
                                                                         adjustable.

                                                                                             4.000
                                                                           0.250             3.500
                                                                                      V2-R-331    V1-R-331
             Part No.                       Description                                                       0.196 dia.-
                                                                             1.250                            thru typ (2)
             VA-011                         Oscillator Module or Auto-Cycling of a                            places
                                                  Single-Acting Cylinder  2.500

             Bill of Materials in Assembly
                                                                                 SUPPLY  START      START  CYLINDER
             Qty.  Part No.      Description
                2       R-333              3-Way Adjustable Delay Modular Valve         SUPPLY  INPUT
                1       CM-011-PQ    Circuit Manifold                                   5/32” OD push-quick  1/4” OD push-quick
                                                                                        fittings typ. (2) places  fittings typ. (2) places
              10’      URT1-0805-GNT 1/4” O.D. Polyurethane Tubing, Green
               5’       URT1-0503-CLT  5/32” O.D. Polyurethane Tubing, Clear
             All components are also available for individual purchase
             The CM-011 subplate is available with 1/8” NPT and #10-32 threads




                                                                           3.549




                                                                             0.625


                                                                                                  cylinder
                                                                                                8       4



                                                                                                      R-333
                                                                                  4


                                                                                                   1         B
                                                                         2     R-333


                                                                                       A                    start
                                                                         3  1                    supply    supply
