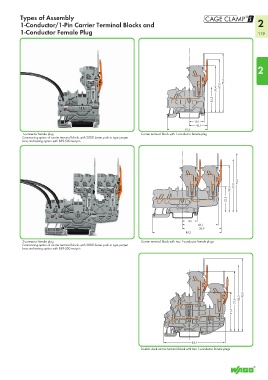

Types of Assembly S
1-Conductor/1-Pin Carrier Terminal Blocks and 2
1-Conductor Female Plug 119
2
75,3
67,8
59,4
32,5
19,1
46,1
52,5
1-connector female plug Carrier terminal block with 1-conductor female plug
Commoning option of carrier terminal blocks with 2000 Series push-in type jumper
bars and testing option with 859-500 test pin
75,3
67,8
59,4
32,5
19,1
46,1
50,9
89,2
2-connector female plug Carrier terminal block with two 1-conductor female plugs
Commoning option of carrier terminal blocks with 2000 Series push-in type jumper
bars and testing option with 859-500 test pin
93,8
86,3
77,9
51,3
84,1
Double deck carrier terminal block with two 1-conductor female plugs
