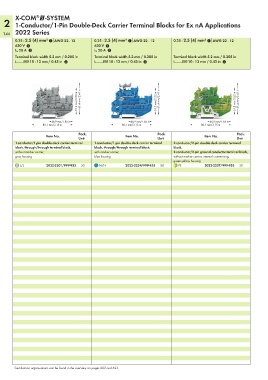

X-COM @-SYSTEM
®
2 1-Conductor/1-Pin Double-Deck Carrier Terminal Blocks for Ex nA Applications
144 2022 Series

0.25 - 2.5 (4) mm² 1 AWG 22 - 12 0.25 - 2.5 (4) mm² 1 AWG 22 - 12 0.25 - 2.5 (4) mm² 1 AWG 22 - 12
630 V 2 630 V 2
I N 20 A 3 I N 20 A 3
Terminal block width 5.2 mm / 0.205 in Terminal block width 5.2 mm / 0.205 in Terminal block width 5.2 mm / 0.205 in
L 10 - 12 mm / 0.43 in 4 L 10 - 12 mm / 0.43 in 4 L 10 - 12 mm / 0.43 in 4

51,3 mm/2.02 in 61,4 mm/2.41 in 51,3 mm/2.02 in 61,4 mm/2.41 in 51,3 mm/2.02 in 61,4 mm/2.41 in

46,9 mm/1.85 in 46,9 mm/1.85 in 46,9 mm/1.85 in
80,1 mm/3.15 in 80,1 mm/3.15 in 80,1 mm/3.15 in
Pack. Pack. Pack.
Item No. Item No. Item No.
Unit Unit Unit
1-conductor/1-pin double-deck carrier terminal 1-conductor/1-pin double-deck carrier terminal 2-conductor/2-pin double-deck carrier terminal
block, through/through terminal block, block, through/through terminal block, block,
without marker carrier, with marker carrier, 2-conductor/2-pin ground conductor terminal block,
gray housing blue housing without marker carrier, internal commoning,
green-yellow housing
L/L 2022-2201/999-953 50 N/N 2022-2234/999-953 50 PE 2022-2207/999-953 50

Certification organizations can be found in the overview on pages 622 and 623.
