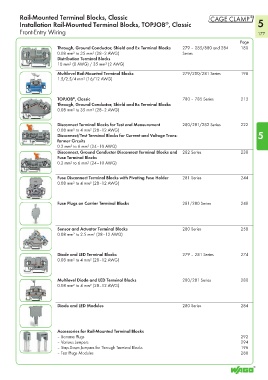

Rail-Mounted Terminal Blocks, Classic
Installation Rail-Mounted Terminal Blocks, TOPJOB , Classic 5
®
Front-Entry Wiring 177

Page
Through, Ground Conductor, Shield and Ex Terminal Blocks 279 – 285/880 and 284 180
0.08 mm² to 35 mm² (28–2 AWG) Series
Distribution Terminal Blocks
10 mm² (8 AWG) / 35 mm² (2 AWG)
Multilevel Rail-Mounted Terminal Blocks 279/280/281 Series 198
1.5/2.5/4 mm² (16/12 AWG)

TOPJOB , Classic 780 – 785 Series 213
®
Through, Ground Conductor, Shield and Ex Terminal Blocks
0.08 mm² to 35 mm² (28–2 AWG)

Disconnect Terminal Blocks for Test and Measurement 280/281/282 Series 222
0.08 mm² to 4 mm² (28–12 AWG)
Disconnect/Test Terminal Blocks for Current and Voltage Trans- 5
former Circuits
0.2 mm² to 6 mm² (24–10 AWG)
Disconnect, Ground Conductor Disconnect Terminal Blocks and 282 Series 238
Fuse Terminal Blocks
0.2 mm² to 6 mm² (24–10 AWG)

Fuse Disconnect Terminal Blocks with Pivoting Fuse Holder 281 Series 244
0.08 mm² to 4 mm² (28–12 AWG)

Fuse Plugs on Carrier Terminal Blocks 281/280 Series 248

Sensor and Actuator Terminal Blocks 280 Series 258
0.08 mm² to 2.5 mm² (28–12 AWG)

Diode and LED Terminal Blocks 279 – 281 Series 274
0.08 mm² to 4 mm² (28–12 AWG)

Multilevel Diode and LED Terminal Blocks 280/281 Series 280
0.08 mm² to 4 mm² (28–12 AWG)

Diode and LED Modules 280 Series 284

Accessories for Rail-Mounted Terminal Blocks
– Banana Plugs 292
– Various Jumpers 294
– Step-Down Jumpers for Through Terminal Blocks 196
– Test Plugs Modules 288
