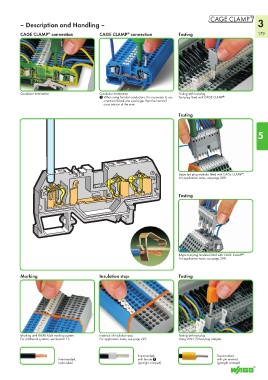

Page 181 - Wago_Rail-MountedTerminalBlockSystems_Volume1_2015_US.pdf

"

– Description and Handling – 5 3
179
CAGE CLAMP connection CAGE CLAMP connection Testing 179
®
®

Conductor termination Conductor termination Testing with test plug.
1 When using ferruled conductors, it is necessary to use Test plug fitted with CAGE CLAMP .
®
a terminal block one size larger than the nominal
cross section of the wire.
Testing

5

®
L-type test plug modules fitted with CAGE CLAMP .
For application notes, see page 288.

Testing

B-type test plug modules fitted with CAGE CLAMP .
®
For application notes, see page 289.

Marking Insulation stop Testing

Marking with WMB Multi marking system. Insertion of insulation stop. Testing with test plug.
For additional systems, see Section 13. For application notes, see page 293. Using 209-170 test plug adapter.

fine-stranded, fine-stranded,
fine-stranded, with ferrule 1 with pin terminal
tip-bonded (gastight crimped) (gastight crimped)
