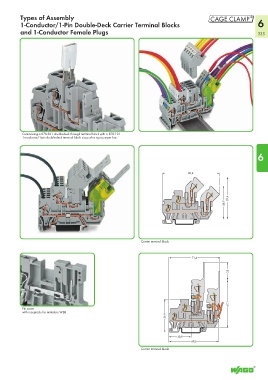

Types of Assembly
1-Conductor/1-Pin Double-Deck Carrier Terminal Blocks 6
and 1-Conductor Female Plugs 335

Commoning a 870-501 double-deck through terminal block with a 870-101
1-conductor/1-pin double-deck terminal block via push-in type jumper bar.

6

80,4

59,4
46,9

Carrier terminal block

71,4

25

67,1
Pin cover
with receptacle for miniature WSB
39,9

30,9
69,6
Carrier terminal block
