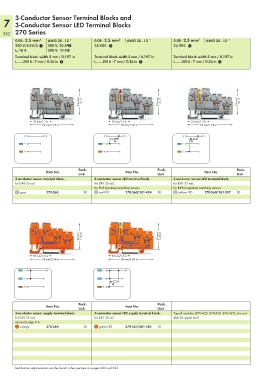

Page 384 - Wago_Rail-MountedTerminalBlockSystems_Volume1_2015_US.pdf

3-Conductor Sensor Terminal Blocks and
7 3-Conductor Sensor LED Terminal Blocks
382 270 Series
0.08 - 2.5 mm² AWG 28 - 12 * 0.08 - 2.5 mm² AWG 28 - 12 * 0.08 - 2.5 mm² AWG 28 - 12 *
250 V/4 kV/3 1 300 V, 20 AU 24 VDC 2 24 VDC 2
I N 18 A 300 V, 10 A2
Terminal block width 5 mm / 0.197 in Terminal block width 5 mm / 0.197 in Terminal block width 5 mm / 0.197 in
L 6 - 7 mm / 0.26 in 3 L 6 - 7 mm / 0.26 in 3 L 6 - 7 mm / 0.26 in 3

<____ 39 mm/ ____> 1.54 in <____ 39 mm/ ____> 1.54 in <____ 39 mm/ ____> 1.54 in

(_ 33 mm/1.3 in _) (_ 33 mm/1.3 in _) (_ 33 mm/1.3 in _)
<________ 68 mm/2.68 in __________> <________ 68 mm/2.68 in __________> <________ 68 mm/2.68 in __________>
S S S S S S

Pack. Pack. Pack.
Item No. Unit Item No. Unit Item No. Unit
3-conductor sensor terminal block, 3-conductor sensor LED terminal block, 3-conductor sensor LED terminal block,
for DIN 35 rail for DIN 35 rail, for DIN 35 rail,
for PNP (positive) switching sensors for NPN (negative) switching sensors
gray 270-560 50 red LED 270-560/281-434 50 yellow LED 270-560/281-507 50

<____ 39 mm/ ____> 1.54 in <____ 39 mm/ ____> 1.54 in

(_ 33 mm/1.3 in _) (_ 33 mm/1.3 in _)
<________ 68 mm/2.68 in __________> <________ 68 mm/2.68 in __________>

Pack. Pack.
Item No. Item No.
Unit Unit
3-conductor sensor supply terminal block, 3-conductor sensor LED supply terminal block, Tap-off modules (870-425, 870-426, 870-427) also suit-
for DIN 35 rail, for DIN 35 rail able for signal level.
internal bridge 9 A
orange 270-564 50 green LED 270-564/281-483 10

Certification organizations can be found in the overview on pages 622 and 623.
