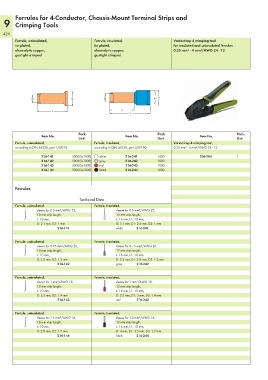

Page 428 - Wago_Rail-MountedTerminalBlockSystems_Volume1_2015_US.pdf

Ferrules for 4-Conductor, Chassis-Mount Terminal Strips and
9 Crimping Tools
426
Ferrule, uninsulated, Ferrule, insulated, Variocrimp 4 crimping tool
tin-plated, tin-plated, for insulated and uninsulated ferrules
electrolytic copper, electrolytic copper, 0.25 mm² - 4 mm²/AWG 24 - 12
gastight crimped gastight crimped

<D2> <___D___> <D2> <__ D1 __> <____ D ____>

<__________ L __________> <_______ L1 _______>
<_______________ L ______________>

Pack. Pack. Pack.
Item No. Item No. Item No.
Unit Unit Unit
Ferrule, uninsulated, Ferrule, insulated, Variocrimp 4 crimping tool,
according to DIN 46228, part 1/08.92 according to DIN 46228, part 4/09.90 0.25 mm² - 4 mm²/AWG 24 - 12

216-141 5000 (5x1000) white 216-241 1000 206-204 1
216-142 5000 (5x1000) gray 216-242 1000
216-143 5000 (5x1000) red 216-243 1000
216-144 5000 (5x1000) black 216-244 1000

Ferrules

Technical Data
Ferrule, uninsulated, Ferrule, insulated,
sleeve for 0.5 mm²/AWG 22, sleeve for 0.5 mm²/AWG 22,
10 mm strip length, 12 mm strip length,
L: 10 mm, L: 16 mm, L1: 10 mm,
D: 2.1 mm, D2: 1 mm D: 3.1 mm, D1: 2.6 mm, D2: 1 mm
216-141 white 216-241

Ferrule, uninsulated, Ferrule, insulated,
sleeve for 0.75 mm²/AWG 20, sleeve for 0.75 mm²/AWG 20,
10 mm strip length, 12 mm strip length,
L: 10 mm, L: 16 mm, L1: 10 mm,
D: 2.3 mm, D2: 1.2 mm D: 3.3 mm, D1: 2.8 mm, D2: 1.2 mm
216-142 gray 216-242

Ferrule, uninsulated, Ferrule, insulated,
sleeve for 1 mm²/AWG 18, sleeve for 1 mm²/AWG 18,
10 mm strip length, 12 mm strip length,
L: 10 mm, L: 16 mm, L1: 10 mm,
D: 2.5 mm, D2: 1.4 mm D: 3.5 mm, D1: 3 mm, D2: 1.4 mm
216-143 red 216-243

Ferrule, uninsulated, Ferrule, insulated,
sleeve for 1.5 mm²/AWG 16, sleeve for 1.5 mm²/AWG 16,
10 mm strip length, 12 mm strip length,
L: 10 mm, L: 16 mm, L1: 10 mm,
D: 2.8 mm, D2: 1.7 mm D: 4 mm, D1: 3.5 mm, D2: 1.7 mm
216-144 black 216-244
