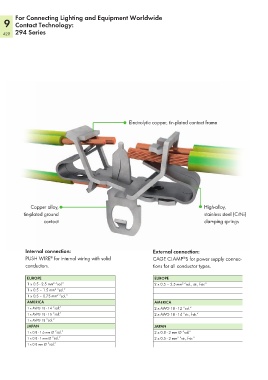

Page 430 - Wago_Rail-MountedTerminalBlockSystems_Volume1_2015_US.pdf

For Connecting Lighting and Equipment Worldwide
9 Contact Technology:
428 294 Series

Electrolytic copper, tin-plated contact frame

Copper alloy, High-alloy,
tin-plated ground stainless steel (CrNi)
contact clamping springs

Internal connection: External connection:
PUSH WIRE for internal wiring with solid CAGE CLAMP S for power supply connec-
®
®
conductors. tions for all conductor types.

EUROPE EUROPE
1 x 0.5 - 2.5 mm “sol.” 2 x 0.5 – 2.5 mm “sol., str., f-str.”
2
2
1 x 0.5 – 1.5 mm “sol.”
2
1 x 0.5 – 0.75 mm “sol.”
2
AMERICA AMERICA
1 x AWG 18 - 14 “sol.” 2 x AWG 18 - 12 “sol.”
1 x AWG 18 - 16 “sol.” 2 x AWG 18 - 14 “str., f-str.”
1 x AWG 18 “sol.”
JAPAN JAPAN
1 x 0.8 - 1.6 mm Ø “sol.” 2 x 0.8 - 2 mm Ø “sol.”
1 x 0.8 - 1 mm Ø “sol.” 2 x 0.5 - 2 mm “str., f-str.”
2
1 x 0.8 mm Ø “sol.”
