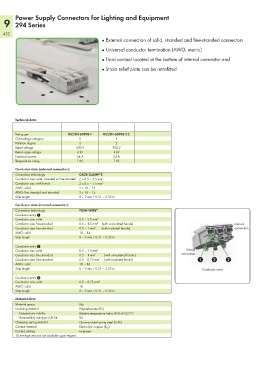

Page 434 - Wago_Rail-MountedTerminalBlockSystems_Volume1_2015_US.pdf

Power Supply Connectors for Lighting and Equipment
9 294 Series
432
● External connection of solid, stranded and fine-stranded connectors

● Universal conductor termination (AWG, metric)
● Third contact located at the bottom of internal connector end

● Strain relief plate can be retrofitted

Technical data:

Rating per IEC/EN 60998-1 IEC/EN 60998-2-2
Overvoltage category II II
Pollution degree 2 2
Rated voltage 500 V 500 V
Rated surge voltage 4 kV 4 kV
Nominal current 24 A 24 A
Temperature rating T 85 T 85
Conductor data (external connection):
Connection technology CAGE CLAMP S
®
Conductor size: solid, stranded or fine-stranded 2 x 0.5 – 2.5 mm 2
Conductor size: with ferrule 2 x 0.5 – 1.5 mm 2
AWG: solid 2 x 18 – 12
AWG: fine-stranded and stranded 2 x 18 – 14
Strip length 8 – 9 mm / 0.31 – 0.35 in
Conductor data (internal connection):
Connection technology PUSH WIRE ®
Conductor entry 1
Conductor size: solid 0.5 – 2.5 mm 2
Conductor size: fine-stranded 0.5 – 1.5 mm (with uninsulated ferrule) Internal
2
Conductor size: fine-stranded 0.5 – 1 mm (with insulated ferrule) connection
2
AWG: solid 18 – 14
Strip length 8 – 9 mm / 0.31 – 0.35 in
Conductor entry 2
Conductor size: solid 0.5 – 1.5 mm 2 Exteral
Conductor size: fine-stranded 0.5 – 1 mm (with uninsulated ferrule) connection
2
Conductor size: fine-stranded 0.5 – 0.75 mm (with insulated ferrule) 1 3 2
2
AWG: solid 18 – 16
Strip length 8 – 9 mm / 0.31 – 0.35 in Conductor entry
Conductor entry 3
Conductor size: solid 0.5 – 0.75 mm 2
AWG: solid 18
Strip length 8 – 9 mm / 0.31 – 0.35 in
Material data:
Material group IIIa
Insulating material Polycarbonate (PC)
Temperature stability Relative temperature index (RTI) of 125°C
Flammability rating per UL 94 V0
Clamping spring material Chrome nickel spring steel (CrNi)
Contact material Electrolytic copper (E Cu)
Contact plating tin-plated
16 mm-high versions are available upon request.
