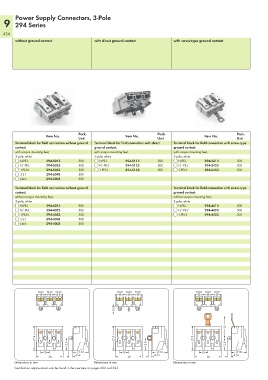

Page 436 - Wago_Rail-MountedTerminalBlockSystems_Volume1_2015_US.pdf

Power Supply Connectors, 3-Pole
9 294 Series
434
without ground contact with direct ground contact with screw-type ground contact

Pack. Pack. Pack.
Item No. Item No. Item No.
Unit Unit Unit
Terminal block for field connection without ground Terminal block for field connection with direct Terminal block for field connection with screw-type
contact, ground contact, ground contact,
with snap-in mounting feet, with snap-in mounting feet, with snap-in mounting feet,
3-pole, white 3-pole, white 3-pole, white
N-PE-L 294-5013 500 N-PE-L 294-5113 500 N-PE-L 294-5413 500
N´-PE-L´ 294-5023 500 N´-PE-L´ 294-5123 500 N´-PE-L´ 294-5423 500
1-PE-N 294-5053 500 1-PE-N 294-5153 500 1-PE-N 294-5453 500
3-2-1 294-5043 500
plain 294-5003 500
Terminal block for field connection without ground Terminal block for field connection with screw-type
contact, ground contact,
without snap-in mounting feet, without snap-in mounting feet,
3-pole, white 3-pole, white
N-PE-L 294-4013 500 N-PE-L 294-4413 500
N´-PE-L´ 294-4023 500 N´-PE-L´ 294-4423 500
1-PE-N 294-4053 500 1-PE-N 294-4453 500
3-2-1 294-4043 500
plain 294-4003 500

> 5,2 <

<____ _ 27,3 _ ____> <13,9 > <____ _ 27,3 _ ____> <13,9 > <____ _ 27,3 _ ____> <13,9 ><_____ 25 ___ __>

(_10 _) <_17 ±0,2 _> (_10 _) <_17 ±0,2 _> (_10 _) <_17 ±0,2 _>
<________ 30 ________> 4,53 ____> > <________ 30 ________> 4,53 ____> > <________ 30 ________> 4,53 ____> >
Dimensions in mm Dimensions in mm Dimensions in mm
Certification organizations can be found in the overview on pages 622 and 623.
