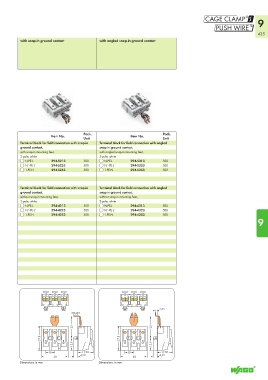

Page 437 - Wago_Rail-MountedTerminalBlockSystems_Volume1_2015_US.pdf

S
9

435
with snap-in ground contact with angled snap-in ground contact

Pack. Pack.
Item No. Item No.
Unit Unit
Terminal block for field connection with snap-in Terminal block for field connection with angled
ground contact, snap-in ground contact,
with snap-in mounting feet, with angled snap-in mounting feet,
3-pole, white 3-pole, white
N-PE-L 294-5213 500 N-PE-L 294-5313 500
N´-PE-L´ 294-5223 500 N´-PE-L´ 294-5323 500
1-PE-N 294-5253 500 1-PE-N 294-5353 500

Terminal block for field connection with snap-in Terminal block for field connection with angled
ground contact, snap-in ground contact,
without snap-in mounting feet, without snap-in mounting feet,
3-pole, white 3-pole, white
N-PE-L 294-4213 500 N-PE-L 294-4313 500
N´-PE-L´ 294-4223 500 N´-PE-L´ 294-4323 500
1-PE-N 294-4253 500 1-PE-N 294-4353 500
9

2,35
> <____
> 5,2 <

<____ _ 27,3 _ ____> <13,9 ><_____ 25 ___ __> <____ _ 27,3 _ ____> <13,9 ><_____ 25 ___ __>

(_10 _) <_17 ±0,2 _> (_10 _) <_17 ±0,2 _>
<________ 30 ________> 4,53 ____> > <________ 30 ________> 4,53 ____> >
Dimensions in mm Dimensions in mm
