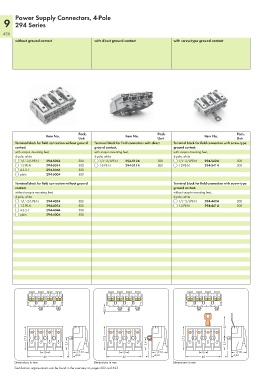

Page 438 - Wago_Rail-MountedTerminalBlockSystems_Volume1_2015_US.pdf

Power Supply Connectors, 4-Pole
9 294 Series
436
without ground contact with direct ground contact with screw-type ground contact

Pack. Pack. Pack.
Item No. Item No. Item No.
Unit Unit Unit
Terminal block for field connection without ground Terminal block for field connection with direct Terminal block for field connection with screw-type
contact, ground contact, ground contact,
with snap-in mounting feet, with snap-in mounting feet, with snap-in mounting feet,
4-pole, white 4-pole, white 4-pole, white
1/L´-2/L-PE-N 294-5024 500 1/L´-2/L-PE-N 294-5124 500 1/L´-2/L-PE-N 294-5424 500
1-2-PE-N 294-5014 500 1-2-PE-N 294-5114 500 1-2-PE-N 294-5414 500
4-3-2-1 294-5044 500
plain 294-5004 500
Terminal block for field connection without ground Terminal block for field connection with screw-type
contact, ground contact,
without snap-in mounting feet, without snap-in mounting feet,
4-pole, white 4-pole, white
1/L´-2/L-PE-N 294-4024 500 1/L´-2/L-PE-N 294-4424 500
1-2-PE-N 294-4014 500 1-2-PE-N 294-4414 500
4-3-2-1 294-4044 500
plain 294-4004 500

> 5,2 <

<____ _ 27,3 _ ____> <13,9 > <____ _ 27,3 _ ____> <13,9 > <____ _ 27,3 _ ____> <13,9 ><_____ 25 ___ __>

(_10 _) <_17 ±0,2 _> (_10 _) <_17 ±0,2 _> (_10 _) <_17 ±0,2 _>
<___________ 40 ____________> 4,53 ____> > <___________ 40 ____________> 4,53 ____> > <___________ 40 ____________> 4,53 ____> >
Dimensions in mm Dimensions in mm Dimensions in mm
Certification organizations can be found in the overview on pages 622 and 623.
