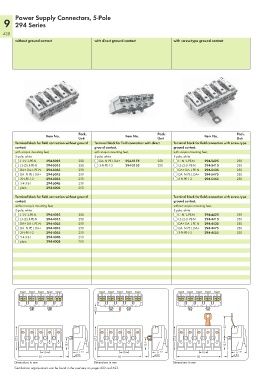

Power Supply Connectors, 5-Pole
9 294 Series
438
without ground contact with direct ground contact with screw-type ground contact

Pack. Pack. Pack.
Item No. Item No. Item No.
Unit Unit Unit
Terminal block for field connection without ground Terminal block for field connection with direct Terminal block for field connection with screw-type
contact, ground contact, ground contact,
with snap-in mounting feet, with snap-in mounting feet, with snap-in mounting feet,
5-pole, white 5-pole, white 5-pole, white
L´-N´-L-PE-N 294-5025 250 DA- N PE L DA+ 294-5175 250 L´-N´-L-PE-N 294-5425 250
L3-L2-L1-PE-N 294-5015 250 3-N-PE-1-2 294-5155 250 L3-L2-L1-PE-N 294-5415 250
DA+ DA- L PE N 294-5035 250 DA+ DA- L PE N 294-5435 250
DA- N PE L DA+ 294-5075 250 DA- N PE L DA+ 294-5475 250
3-N-PE-1-2 294-5055 250 3-N-PE-1-2 294-5455 250
5-4-3-2-1 294-5045 250
plain 294-5005 250

Terminal block for field connection without ground Terminal block for field connection with screw-type
contact, ground contact,
without snap-in mounting feet, without snap-in mounting feet,
5-pole, white 5-pole, white
L´-N´-L-PE-N 294-4025 250 L´-N´-L-PE-N 294-4425 250
L3-L2-L1-PE-N 294-4015 250 L3-L2-L1-PE-N 294-4415 250
DA+ DA- L PE N 294-4035 250 DA+ DA- L PE N 294-4435 250
DA- N PE L DA+ 294-4075 250 DA- N PE L DA+ 294-4475 250
3-N-PE-1-2 294-4055 250 3-N-PE-1-2 294-4455 250
5-4-3-2-1 294-4045 250
plain 294-4005 250

> 5,2 <

<____ _ 27,3 _ ____> <13,9 > <____ _ 27,3 _ ____> <13,9 > <____ _ 27,3 _ ____> <13,9 ><_____ 25 ___ __>

(_10 _) <_17 ±0,2 _> (_10 _) <_17 ±0,2 _> (_10 _) <_17 ±0,2 _>
<_______________ 50 ________________> 4,53 ____> > <_______________ 50 ________________> 4,53 ____> > <_______________ 50 ________________> 4,53 ____> >
Dimensions in mm Dimensions in mm Dimensions in mm
Certification organizations can be found in the overview on pages 622 and 623.
