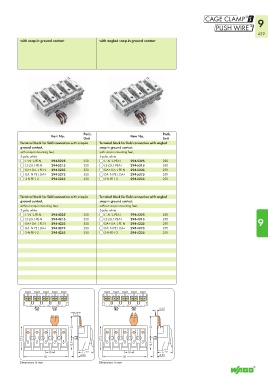

9
S

439
with snap-in ground contact with angled snap-in ground contact

Pack. Pack.
Item No. Item No.
Unit Unit
Terminal block for field connection with snap-in Terminal block for field connection with angled
ground contact, snap-in ground contact,
with snap-in mounting feet, with snap-in mounting feet,
5-pole, white 5-pole, white
L´-N´-L-PE-N 294-5225 250 L´-N´-L-PE-N 294-5325 250
L3-L2-L1-PE-N 294-5215 250 L3-L2-L1-PE-N 294-5315 250
DA+ DA- L PE N 294-5235 250 DA+ DA- L PE N 294-5335 250
DA- N PE L DA+ 294-5275 250 DA- N PE L DA+ 294-5375 250
3-N-PE-1-2 294-5255 250 3-N-PE-1-2 294-5355 250

Terminal block for field connection with snap-in Terminal block for field connection with angled
ground contact, snap-in ground contact,
without snap-in mounting feet, without snap-in mounting feet,
5-pole, white 5-pole, white
L´-N´-L-PE-N 294-4225 250 L´-N´-L-PE-N 294-4325 250
L3-L2-L1-PE-N 294-4215 250 L3-L2-L1-PE-N 294-4315 250 9
DA+ DA- L PE N 294-4235 250 DA+ DA- L PE N 294-4335 250
DA- N PE L DA+ 294-4275 250 DA- N PE L DA+ 294-4375 250
3-N-PE-1-2 294-4255 250 3-N-PE-1-2 294-4355 250

2,35
> <____
> 5,2 <

<____ _ 27,3 _ ____> <13,9 ><_____ 25 ___ __> <____ _ 27,3 _ ____> <13,9 ><_____ 25 ___ __>

(_10 _) <_17 ±0,2 _> (_10 _) <_17 ±0,2 _>
<_______________ 50 ________________> 4,53 ____> > <_______________ 50 ________________> 4,53 ____> >
Dimensions in mm Dimensions in mm
