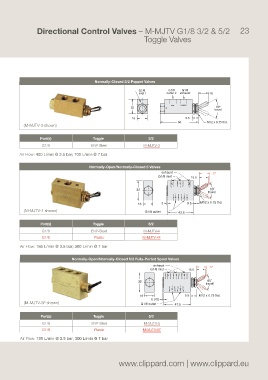

Directional Control Valves – M-MJTV G1/8 3/2 & 5/2 23
Toggle Valves
Normally-Closed 3/2 Poppet Valves
! "! ! # " !
$
# !
(M-MJTV-3 shown)
Port(s) Toggle 3/2
G1/8 ENP Steel M-MJTV-3
Air Flow: 400 L/min @ 3.5 bar; 700 L/min @ 7 bar
Normally-Open/Normally-Closed 5 Valves
!
!
(M-MJTV-4 shown)
Port(s) Toggle 5/2
G1/8 ENP-Steel M-MJTV-4
G1/8 Plastic M-MJTV-4F
Air Flow: 185 L/min @ 3.5 bar; 300 L/min @ 7 bar
Normally-Open/Normally-Closed 5/2 Fully-Ported Spool Valves
(M-MJTV-5F shown)
Port(s) Toggle 5/2
G1/8 ENP-Steel M-MJTV-5
G1/8 Plastic M-MJTV-5F
Air Flow: 185 L/min @ 3.5 bar; 300 L/min @ 7 bar
