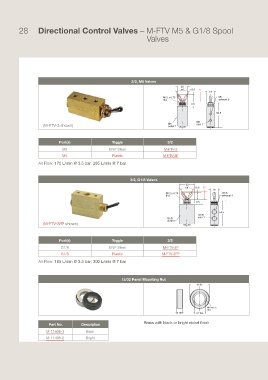

28 Directional Control Valves – M-FTV M5 & G1/8 Spool
Valves

3/2, M5 Valves

(M-FTV-3 shown)

Port(s) Toggle 3/2
M5 ENP Steel M-FTV-3
M5 Plastic M-FTV-3F
Air Flow: 170 L/min @ 3.5 bar; 285 L/min @ 7 bar

3/2, G1/8 Valves

(M-FTV-3FP shown)

Port(s) Toggle 3/2
G1/8 ENP Steel M-FTV-3P
G1/8 Plastic M-FTV-3FP
Air Flow: 185 L/min @ 3.5 bar; 300 L/min @ 7 bar

15/32 Panel Mounting Nut
16 dia.

M12x0.75
thd.
0.187 8.7 dia.
)YHZZ ^P[O ISHJR VY IYPNO[ UPJRLS ÄUPZO
Part No. Description
M-11406-1 Black
M-11406-2 Bright
