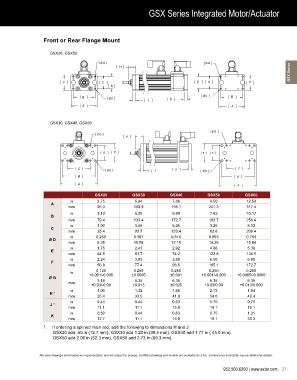

GSX Series Integrated Motor/Actuator

Front or Rear Flange Mount

GSX20, GSX50

Ø G Ø G
GSX Series
H
F C E C F
E

B Ø D J K Ø D B

A A

GSX30, GSX40, GSX60
Ø G
Ø G
H

E F F E

C Ø D J K Ø D C
B B
A A

GSX20 GSX30 GSX40 GSX50 GSX60
in 3.75 5.94 7.68 9.50 12.50
A
mm 95.3 150.9 195.1 241.3 317.5
in 3.13 5.25 6.80 7.63 10.17
B
mm 79.4 133.4 172.7 193.7 258.4
in 1.00 3.69 5.25 3.25 8.13
C
mm 25.4 93.7 133.4 82.6 206.4
in 0.250 0.397 0.516 0.563 0.781
Ø D
mm 6.35 10.08 13.10 14.29 19.84
in 1.75 2.43 2.92 4.88 5.38
E
mm 44.5 61.7 74.2 123.8 136.5
in 2.24 3.05 3.80 6.50 6.80
F
mm 56.8 77.4 96.5 165.1 172.7
0.125 0.250 0.250 0.250 0.250
in +0.001/-0.000 ±0.0005 ±0.001 +0.001/-0.000 +0.0005/-0.0000
Ø G
mm 3.18 6.35 6.35 6.35 6.35
+0.03/-0.00 ±0.013 ±0.025 +0.03/0.00 +0.013/0.000
in 1.00 1.32 1.65 2.13 1.94
H 1
mm 25.4 33.5 41.9 54.0 49.4
in 0.44 0.44 0.63 0.75 0.75
J 1
mm 11.1 11.1 15.9 19.1 19.1
in 0.50 0.44 0.63 0.75 1.31
K
mm 12.7 11.1 15.9 19.1 33.3
1. If ordering a splined main rod, add the following to dimensions H and J:
GSX20 add .50 in (12.7 mm), GSX30 add 1.20 in (30.5 mm), GSX40 add 1.77 in ( 45.0 mm)
GSX50 add 2.06 in (52.3 mm), GSX60 add 2.73 in (69.3 mm)

Pre-sale drawings and models are representative and are subject to change. Certified drawings and models are available for a fee. Consult your local Exlar representative for details.

952.500.6200 | www.exlar.com 27
