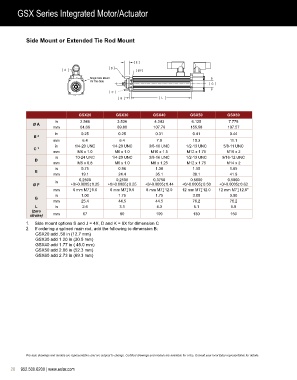

GSX Series Integrated Motor/Actuator

Side Mount or Extended Tie Rod Mount

E
A D Ø F

Single Side Mount
On This Side
G
C
B L

GSX20 GSX30 GSX40 GSX50 GSX60
in 2.546 3.536 4.243 6.125 7.778
Ø A
mm 64.66 89.80 107.76 155.58 197.57
in 0.25 0.25 0.31 0.41 0.44
B 2
mm 6.4 6.4 7.9 10.3 11.1
in 1/4-20 UNC 1/4-20 UNC 3/8-16 UNC 1/2-13 UNC 5/8-11 UNC
C 1
mm M6 x 1.0 M6 x 1.0 M10 x 1.5 M12 x 1.75 M16 x 2
in 10-24 UNC 1/4-20 UNC 3/8-16 UNC 1/2-13 UNC 9/16-12 UNC
D
mm M5 x 0.8 M6 x 1.0 M8 x 1.25 M12 x 1.75 M14 x 2
in 0.75 0.96 1.38 1.50 1.65
E
mm 19.1 24.4 35.1 38.1 41.9
0.2500 0.2500 0.3750 0.5000 0.5000
in
Ø F +0/-0.0005↓‾ 0.25 +0/-0.0005↓‾ 0.25 +0/-0.0005↓‾ 0.44 +0/-0.0005↓‾ 0.50 +0/-0.0005↓‾ 0.62
mm 6 mm M7↓‾ 9.0 6 mm M7↓‾ 9.5 8 mm M7↓‾ 12.0 12 mm M7↓‾ 12.0 12 mm M7↓‾ 12.0"
in 1.00 1.75 1.75 3.00 3.00
G
mm 25.4 44.5 44.5 76.2 76.2
L in 2.6 3.1 4.3 5.1 5.9
(zero
stroke) mm 67 80 109 130 150
1. Side mount options S and J = 4X, D and K = 8X for dimension C
2. If ordering a splined main rod, add the following to dimension B:
GSX20 add .50 in (12.7 mm)
GSX30 add 1.20 in (30.5 mm)
GSX40 add 1.77 in ( 45.0 mm)
GSX50 add 2.06 in (52.3 mm)
GSX60 add 2.73 in (69.3 mm)

Pre-sale drawings and models are representative and are subject to change. Certified drawings and models are available for a fee. Consult your local Exlar representative for details.
