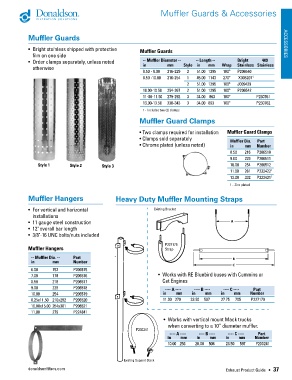

Page 39 - Donaldson - Exhaust product guide for medium and heavy-duty vehicles and equipment

Muffler Guards & Accessories

Muffler Guards

• Bright stainless shipped with protective Muffler Guards ACCESSORIES
film on one side
• Order clamps separately, unless noted -- Muffler Diameter -- -- Length -- Wrap Bright 409
Stainless Stainless
in
mm
Style in
mm
otherwise
8.50 - 9.00 216-229 2 51.00 1295 180º P206540
8.50 -10.00 216-254 1 45.00 1143 270º X005207 1
2 51.00 1295 180º J009429
10.00-10.50 254-267 2 51.00 1295 180º P206542
11-00-11.50 279-292 3 34.00 863 180º P230761
13.00-13.50 330-343 3 34.00 863 180º P230762
1 - Includes two (2) clamps
Muffler Guard Clamps

• Two clamps required for installation Muffler Guard Clamps
• Clamps sold separately Muffler Dia. Part
• Chrome plated (unless noted) in mm Number
8.50 216 P206510
9.00 229 P206511
Style 1 Style 2 Style 3 10.00 254 P206512
11.00 281 P233422 1
13.00 332 P233421 1
1 - Zinc plated

Muffler Hangers Heavy Duty Muffler Mounting Straps

• For vertical and horizontal Existing Bracket
installations
• 11 gauge steel construction A
• 12" overall bar length
• 3/8"-16 UNC bolts/nuts included
P227179
Muffler Hangers Strap

-- Muffler Dia. -- Part B
in mm Number
C
6.00 152 P206515
7.00 178 P206516 • Works with RE Bluebird buses with Cummins or
8.50 216 P206517 Cat Engines
9.00 229 P206518 ---- A ---- ---- B ---- ---- C ---- Part
10.00 254 P206519 in mm in mm in mm Number
8.25x11.50 210x292 P206520 11.00 279 23.50 597 27.75 705 P227179
10.00x15.00 254x381 P206521
11.00 279 P224841
• Works with vertical mount Mack trucks
when converting to a 10” diameter muffler.
P230241
---- A ---- ---- B ---- ---- C ---- Part
in mm in mm in mm Number
10.00 256 20.00 508 23.50 597 P230241

Existing Support Stack
donaldsonfilters.com Exhaust Product Guide • 37
