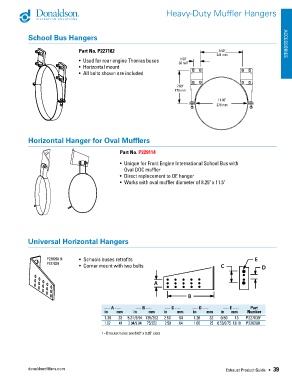

Page 41 - Donaldson - Exhaust product guide for medium and heavy-duty vehicles and equipment

Heavy-Duty Muffler Hangers

School Bus Hangers ACCESSORIES

Part No. P227182 9.50"
241 mm
1.50"
• Used for rear engine Thomas buses 38 mm
• Horizontal mount
• All bolts shown are included

7.00"
179 mm
11.00"
279 mm

Horizontal Hanger for Oval Mufflers

Part No. P229114

P227182 REV 3 • Unique for Front Engine International School Bus with
Oval DOC muffler
• Direct replacement to OE hanger
• Works with oval muffler diameter of 8.25" x 11.5"

P229114 REV 0
Universal Horizontal Hangers

P228260 & • Schools buses retrofits E
P227839 • Corner mount with two bolts C D

A

B

---- A ---- ---- B ---- ---- C ---- ---- D ---- ---- E ---- Part
in mm in mm in mm in mm in mm Number
1.30 33 5.31/9.94 135/252 2.50 64 1.26 32 0.50 13 P227839 1
1.62 41 2.94/9.94 75/252 2.50 64 1.00 25 0.50/0.75 13/19 P228260

1 - Bracket holes are 0.62" x 0.35" slots

P228260 REV 2

donaldsonfilters.com Exhaust Product Guide • 39
