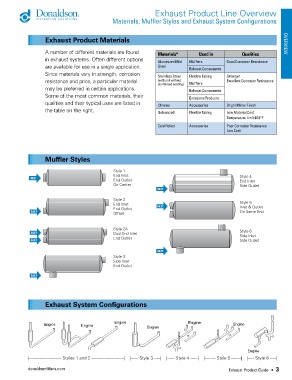

Exhaust Product Line Overview
Materials, Muffler Styles and Exhaust System Configurations

Exhaust Product Materials OVERVIEW

A number of different materials are found Materials* Used in Qualities
in exhaust systems. Often different options Aluminized Mild Mufflers Good Corrosion Resistance
are available for use in a single application. Steel Exhaust Components
Since materials vary in strength, corrosion Stainless Steel Flexible Tubing Stronger
resistance and price, a particular material (with and without Excellent Corrosion Resistance
aluminized coating) Mufflers
may be preferred in certain applications. Exhaust Components
Some of the most common materials, their Emissions Products
qualities and their typical uses are listed in Chrome Accessories Bright Mirror Finish
the table on the right. Galvanized Flexible Tubing Low Material Cost
Temperature Limit 600°F
Cold Rolled Accessories Poor Corrosion Resistance
Low Cost

Muffler Styles

Style 1
End Inlet Style 4
End Outlet End Inlet
On Center Side Outlet

Style 2
End Inlet Style 5
End Outlet Inlet & Outlet
Offset On Same End

Style 2A Style 6
Dual End Inlet Side Inlet
End Outlet
Side Outlet

Style 3
Side Inlet
End Outlet

Exhaust System Configurations

|--------------------------- Styles 1 and 2 ---------------------------| |------ Style 3 -----| |------ Style 4 ------| |--------- Style 5 --------| |----- Style 6 -----|
