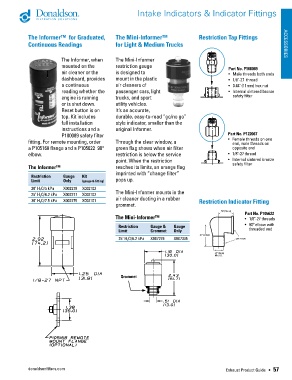

Page 59 - Donaldson - Exhaust product guide for medium and heavy-duty vehicles and equipment

Intake Indicators & Indicator Fittings

The lnformer™ for Graduated, The Mini-lnformer™ Restriction Tap Fittings
Continuous Readings for Light & Medium Trucks ACCESSORIES

The Informer, when The Mini-Informer
mounted on the restriction gauge Part No. P100089
air cleaner or the is designed to • Male threads both ends
dashboard, provides mount in the plastic • 1/8"-27 thread
a continuous air cleaners of • 0.44" (11mm) hex nut
reading whether the passenger cars, light • Internal sintered bronze
engine is running trucks, and sport safety filter
or is shut down. utility vehicles.
Reset button is on It’s an accurate,
top. Kit includes durable, easy-to-read “go/no go”
full installation style indicator, smaller than the
instructions and a original Informer.
P100089 safety filter Part No. P122067
fitting. For remote mounting, order Through the clear window, a • Female threads on one
end, male threads on
a P105168 flange and a P105622 90° green flag shows when air filter opposite end
elbow. restriction is below the service • 1/8"-27 thread
point. When the restriction • Internal sintered bronze
safety filter
The lnformer™ reaches its limits, an orange flag
imprinted with “change filter”
Restriction Gauge Kit
Limit Only (gauge & fitting) pops up.

20" H 2 O/5 kPa X002278 X002103
25" H 2 O/6.2 kPa X002277 X002102 The Mini-Informer mounts in the
30" H 2 O/7.5 kPa X002275 X002101 air cleaner ducting in a rubber Restriction Indicator Fitting
grommet.
.55" (14mm) Part No. P105622
The Mini-lnformer™ • 1/8"-27 threads

Restriction Gauge & Gauge • 90º elbow with
Limit Grommet Only threaded end
.81" (21mm)
25" H 2 O/6.2 kPa X007276 X007335 1/8"-27 NPT

.21" (5mm)
Min. I.D.

Grommet

donaldsonfilters.com Exhaust Product Guide • 57
