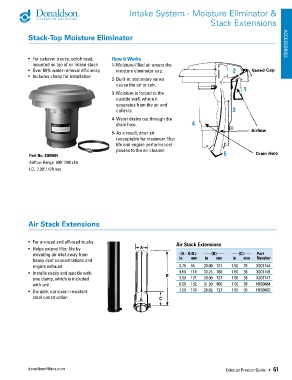

Page 63 - Donaldson - Exhaust product guide for medium and heavy-duty vehicles and equipment

Intake System - Moisture Eliminator &
Stack Extensions

Stack-Top Moisture Eliminator ACCESSORIES

• For cabover trucks, on/off road, How It Works
mounted on top of an intake stack 1- Moisture-filled air enters the
• Over 80% water removal efficiency moisture eliminator cap. 2
• Includes clamp for installation
2- Built-in, stationary vanes
cause the air to spin. 1
3- Moisture is forced to the
outside wall, where it
separates from the air and
collects. 3
4- Water drains out through the
drain hole. 4
5- As a result, drier air
(acceptable for maximum filter
life and engine performance)
passes to the air cleaner.
Part No. X003691 5
Airflow Range: 600-1200 cfm
I.D. 7.00" / 178 mm

Air Stack Extensions

• For on-road and off-road trucks Air Stack Extensions
• Helps extend filter life by
elevating air inlet away from -(A - O.D.)- -----(B)----- -----(C)----- Part
heavy dust concentrations and in mm in mm in mm Number
engine exhaust 3.75 95 29.00 737 1.50 38 X001744
• Installs easily and quickly with 4.50 114 30.25 768 1.50 38 X001746
one clamp, which is included 5.00 127 29.00 737 1.50 38 X001747
with unit 6.00 152 31.50 800 1.50 38 H000484
• Durable, corrosion-resistant 7.00 178 28.62 727 1.50 38 H000483
steel construction

donaldsonfilters.com Exhaust Product Guide • 61
